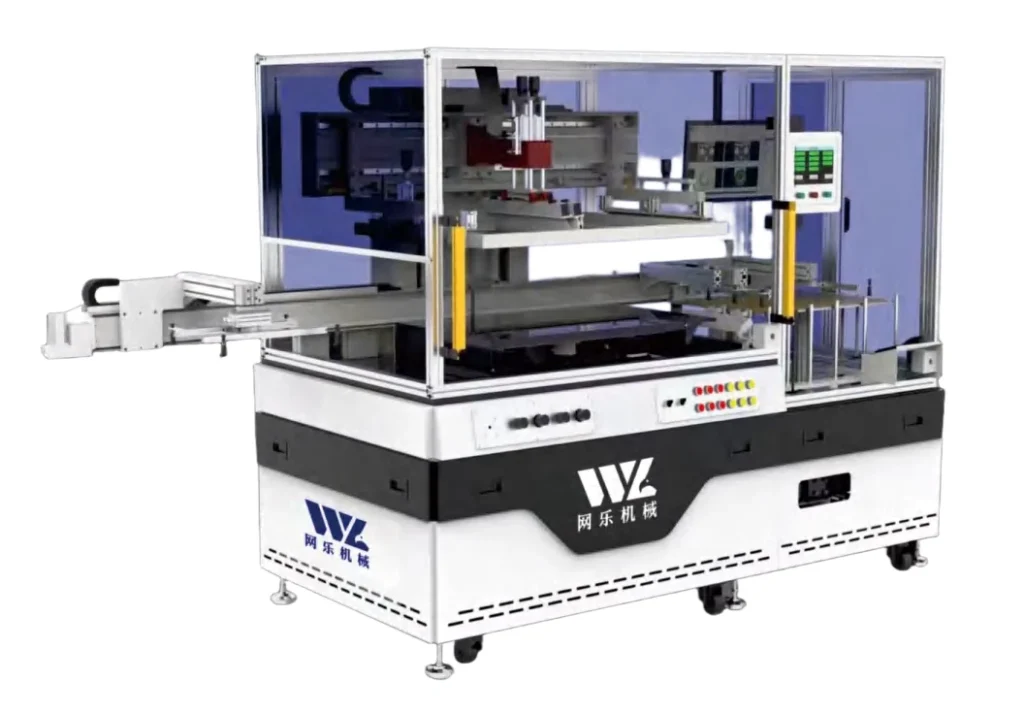

WL-5070PZ Automatic Sheet-Fed Screen Printing Machine
Automatic screen printing for individual sheets, with a maximum print area of 500 × 700 mm, a maximum material width of 500 mm and a loading height of up to 330 mm.
View WL-5070PZ detailsIndividual sheet handling
Sheet-Fed Screen Printing Machines
Automatic screen printing equipment for materials supplied as individual sheets. Choose the feeding and printing configuration around sheet size, stiffness, surface, print area and the handling required after printing.
A sheet-fed print-area figure should not be compared with roll-to-roll web width as if they measure the same thing. If both material formats are possible, review the complete workflow in the sheet-fed versus roll-to-roll guide.
Typical uses
- Sheet materials
- Film sheets
- Industrial printed parts
Process overview
Build the process around the sheet format.
Sheet-fed production calls for controlled feeding and positioning of individual pieces. Evaluate the minimum and maximum sheet dimensions, material thickness and handling behavior together with the artwork and ink system.
Explore the equipment
Models in this family
Before choosing a machine
What to review for your application
Sheet dimensions
Provide the minimum and maximum sheet sizes you need to process.
Thickness & stiffness
Share samples so handling can be assessed with the actual material.
Print area
Define the artwork size, positioning and required edge margins.
Process requirements
Discuss feeding, output and the curing or drying workflow.

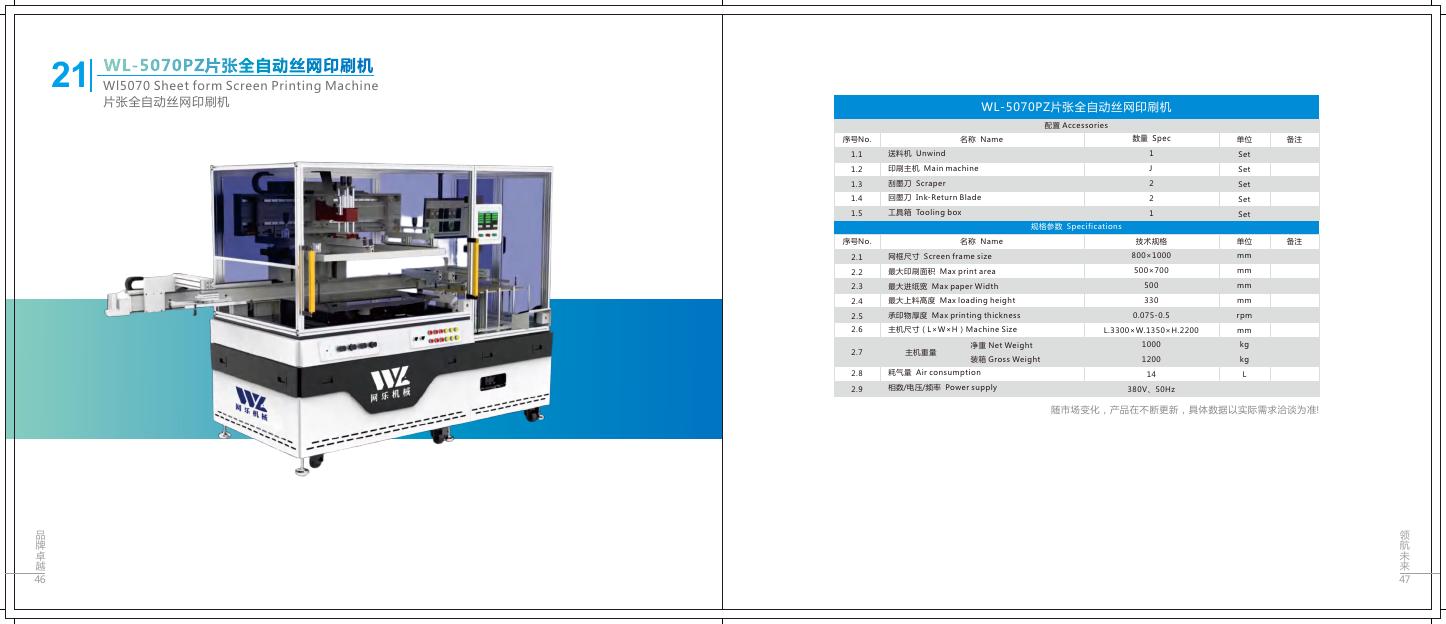

Catalogue references
Representative models
WL5070PZ
Confirm the working format and material handling requirements for your application before selecting the sheet-fed configuration.
