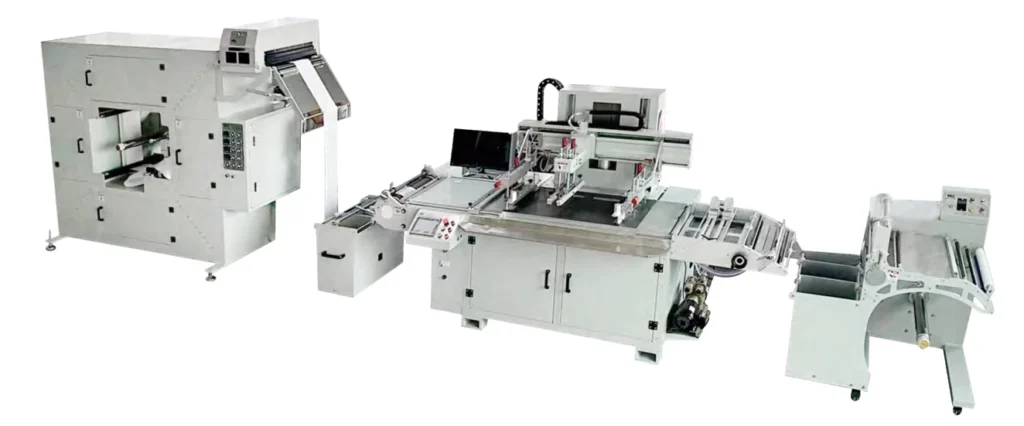

WL-5080CCD Right-Feed Screen Printing Machine
CCD visual registration screen printing with right-side feeding, a moving screen and hot-air drying. Supports a 520 mm web and a 500 × 800 mm print area.
View WL-5080CCD detailsPrint alignment
Registration & CCD Screen Printing Machines
Screen printing systems for alignment to registration marks or existing printed features. This family includes both CCD-assisted and three-point registration configurations for film and electronic-material applications.
Start with the reference method: WL-5080CCD lists right-side feeding with CCD visual registration, while WL-5080CCD-Y lists left-side unwinding with CCD visual registration. WL-5080DW uses three-point registration. These catalogue configurations form a shortlist, not an accuracy ranking.
Provide the artwork, mark position and contrast, substrate sample, required finished alignment and preferred feed direction. Numerical registration performance must be evaluated for the complete job. Compare the approaches in the CCD versus three-point guide.
Typical uses
- Electronic materials
- Membrane switches
- Transfer films
Process overview
Match the registration method to your material and artwork.
Registration requirements depend on the printed features, mark layout and dimensional stability of the material. Our engineers can review the artwork and sample material before recommending a registration and handling configuration.
Explore the equipment
Models in this family

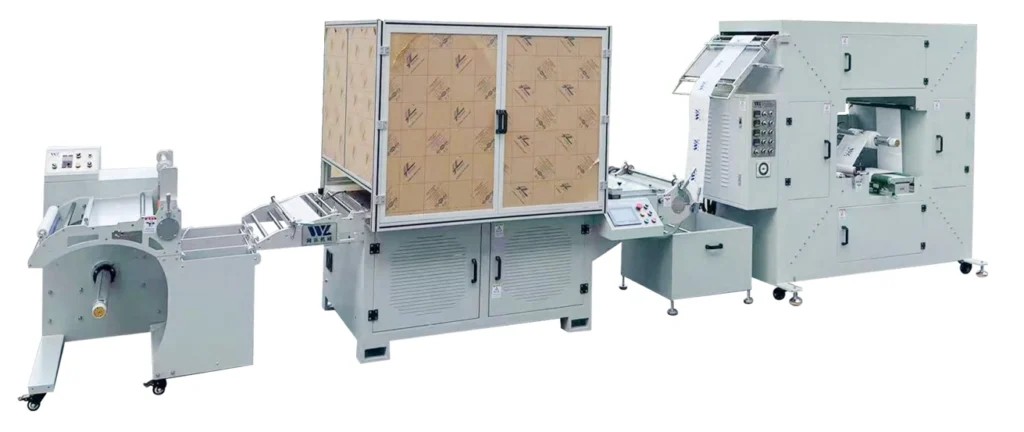

WL-5080CCD-Y CCD Registration Screen Printing Machine
CCD visual registration screen printing with left-side unwinding, a moving screen frame and hot-air drying. Handles webs up to 520 mm wide with a maximum print area of 500 × 800 mm.
View WL-5080CCD-Y details

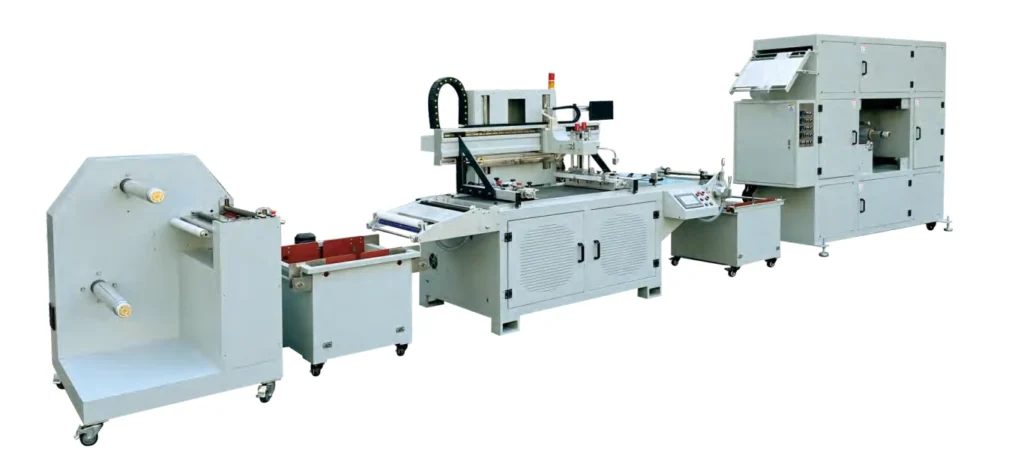

WL-5080DW Three-Point Registration Screen Printing Machine
Single-color screen printing with three-point registration and a drying oven, offering a 500 × 800 mm print area for films, membrane switches and flexible circuits.
View WL-5080DW detailsBefore choosing a machine
What to review for your application
Reference marks
Provide the mark size, position, contrast and artwork layout.
Registration requirement
Specify the alignment tolerance required for the finished part.
Material stability
Consider stretch, thickness and changes during heating or drying.
Sample evaluation
Use sample trials to discuss alignment and handling in your process.
Catalogue references
Representative models
WL5080DW, WL5080CCD, WL5080CCD-Y
Registration methods differ between models. Confirm whether three-point registration or CCD-assisted alignment is appropriate for your job.
