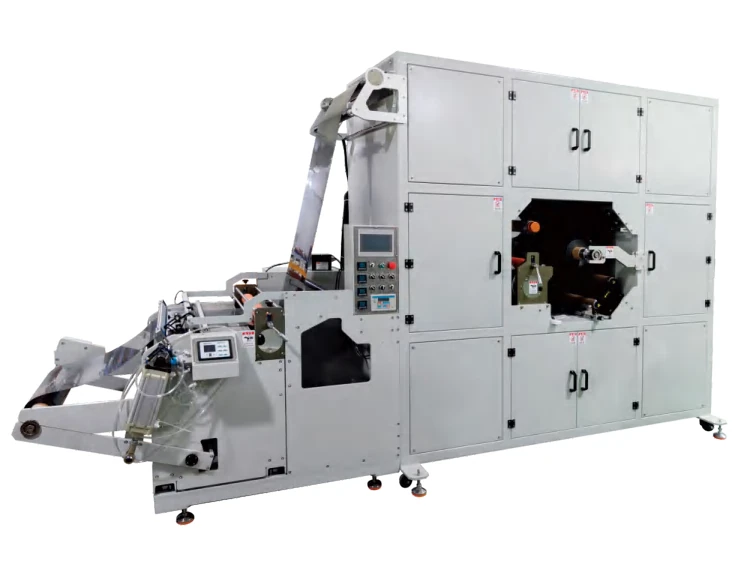

WL-500-YSS-KX Pre-Shrink Drying Oven
Pre-shrink drying oven for film processing, with a 500 mm maximum web width, four heating zones, 60 m listed material storage and 28 kW power.
View WL-500-YSS-KX detailsSupporting equipment
Drying & Web Handling Equipment
Match the unit to the job: WL-500-YSS-KX pre-shrinks film; WL-500ZY-KX is an inline drying oven; and WL-650-HZL-KX is a constant-tension drying oven. WL-500JPDJ guides and rewinds the web rather than drying it. Confirm the material path and sample response before choosing.
Specify the substrate, web width, ink or coating, required treatment, roll dimensions and the machine before and after the unit. Thermal limits and full installation requirements need a project review. Start with the UV curing versus hot-air drying guide where drying choice is still open. For thermal-oven selection, compare the pre-shrink, inline and constant-tension configurations and the sample evidence each requires.
Typical uses
- Hot-air drying
- Film pre-shrinking
- Web guiding & rewinding
Process overview
Keep drying and material handling compatible with the line.
Supporting equipment must suit the ink, substrate and line layout. Discuss temperature, dwell time and web transport together, including how the equipment connects to the printing and finishing stages.
Explore the equipment
Models in this family

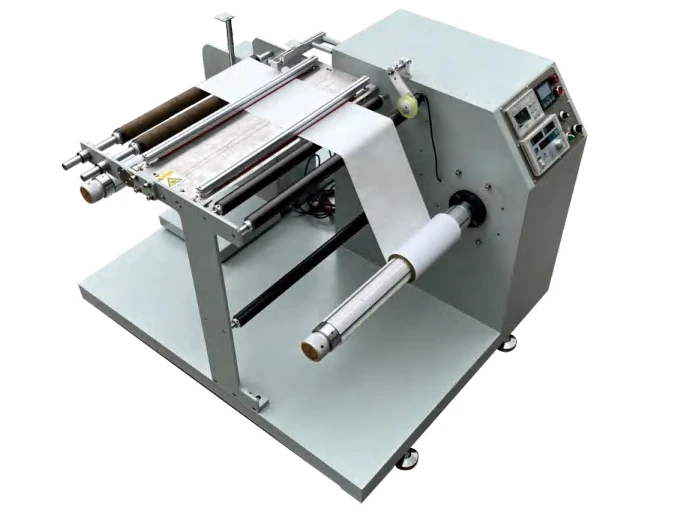

WL-500JPDJ Web Guiding and Rewinding Machine
Web guiding and rewinding for materials up to 500 mm wide, with a length counter and a listed maximum speed of 50 m/min. Rated supply: 220 V; power: 1 kW.
View WL-500JPDJ details

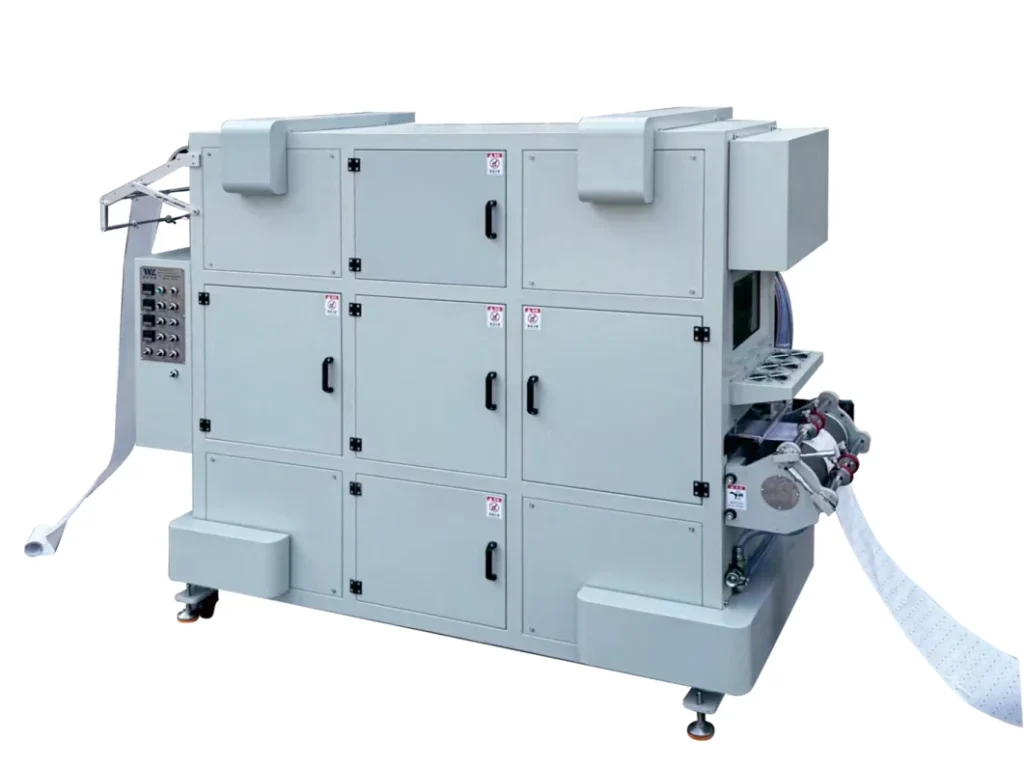

WL-500ZY-KX Inline Drying Oven for Roll-Fed Materials
Inline drying oven for webs up to 500 mm wide, with a left-in, right-out path, four heating areas, 60 m material storage and a 120°C maximum temperature.
View WL-500ZY-KX details

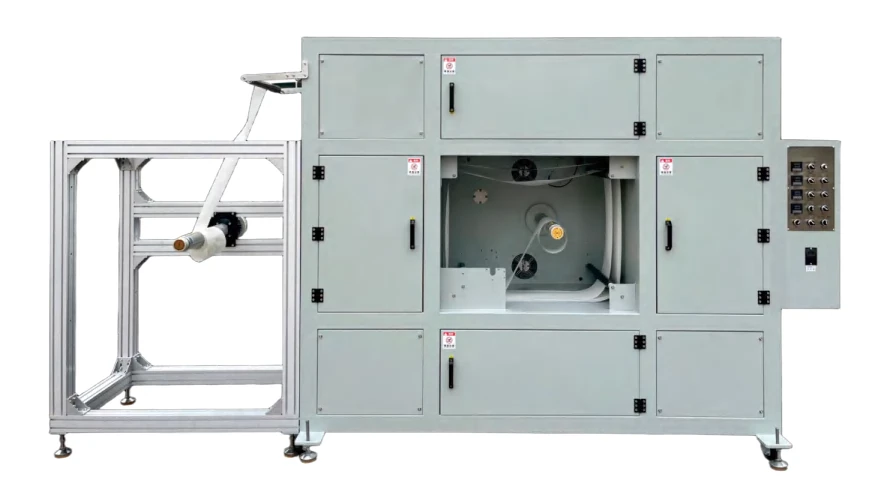

WL-650-HZL-KX Constant-Tension Drying Oven
Constant-tension drying oven with four heating zones, a listed maximum temperature of 120°C, 65 m material storage and 23 kW power.
View WL-650-HZL-KX detailsBefore choosing a machine
What to review for your application
Thermal limits
Provide the material limits and required drying conditions.
Dwell time
Discuss the ink system, required residence time and line output.
Roll & web handling
Confirm web width, roll dimensions, tension and guiding needs.
Installation layout
Review available space and connections to the production line.

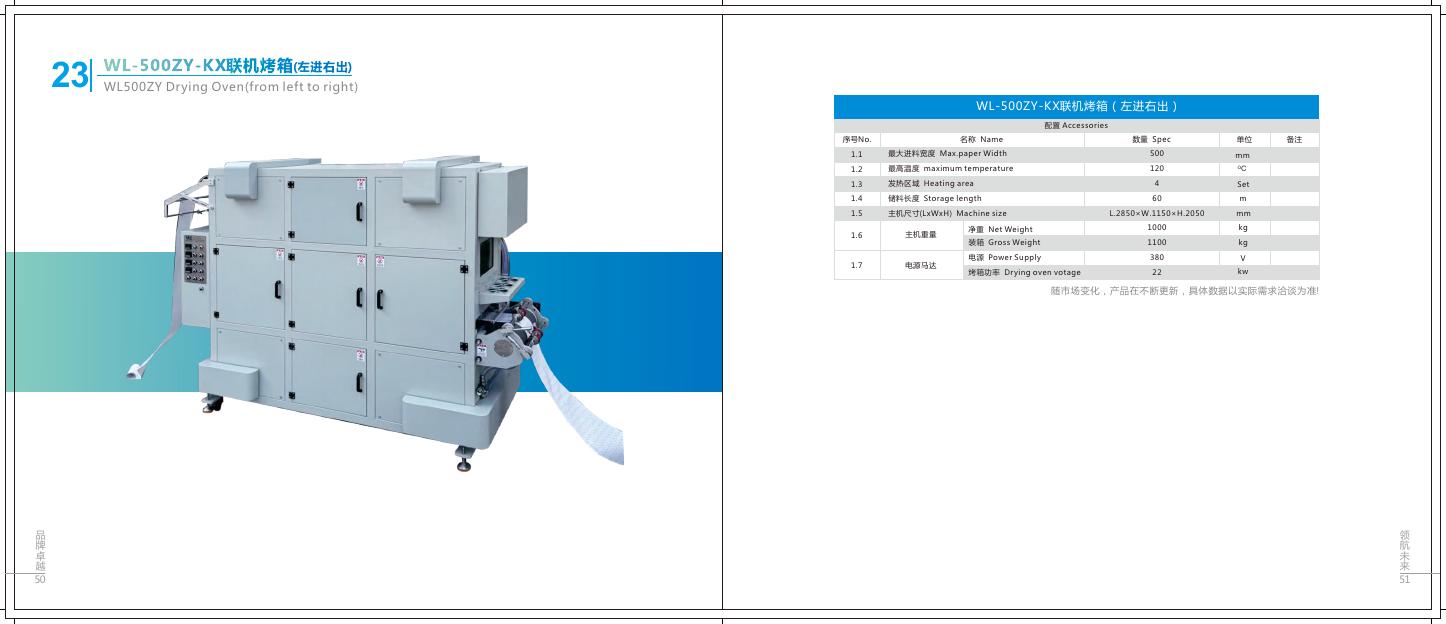

Catalogue references
Representative models
WL500ZY-KX, WL500YSS, WL650HZL, WL500JPDJ
The equipment family covers separate drying and handling units. Confirm model designations and configuration in the quotation.
