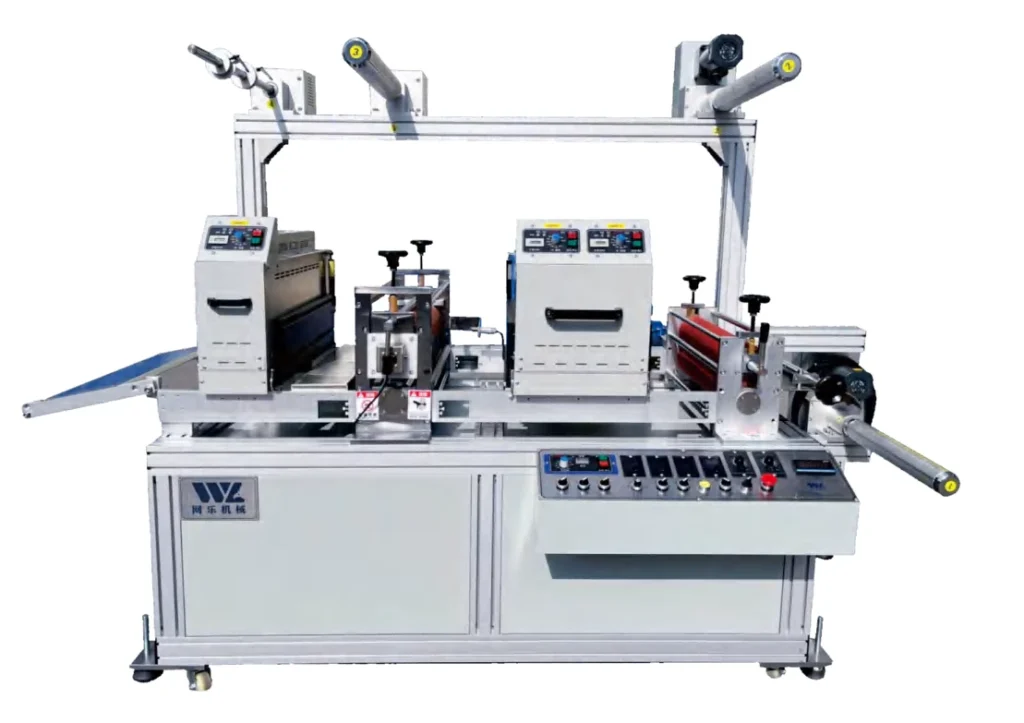

WL-350-LTJ Horizontal Cold Foil Stamping Machine
Horizontal cold foil stamping for webs up to 350 mm wide, with UV drying, foil supply and waste shafts, and rewinding. Listed foil speed: 0–15 m/min.
View WL-350-LTJ detailsDecorative finishing
Screen Printing & Cold Foil Machines
First separate foil finishing from a combined print-and-foil line. WL-350-LTJ is a horizontal cold-foil stamping unit, and WL-500TB-LTJ uses an intermittent cold-foil process. WL-350DW combines screen printing, automatic registration and vertical cold foil. The existing print stage and sample artwork decide which role belongs in the quotation.
Share the label stock, artwork, foil coverage, adhesive, curing route and existing production stages before selecting equipment. Review the screen printing and cold-foil planning guide for a project brief.
Typical uses
- Decorative labels
- Packaging decoration
- Metallic effects
Process overview
Plan printing and metallic finishing as a coordinated process.
A cold-foil workflow brings together the substrate, adhesive, foil and curing process. Choose a combined line or discuss integration with existing equipment based on the design, transfer area and production sequence.
Explore the equipment
Models in this family

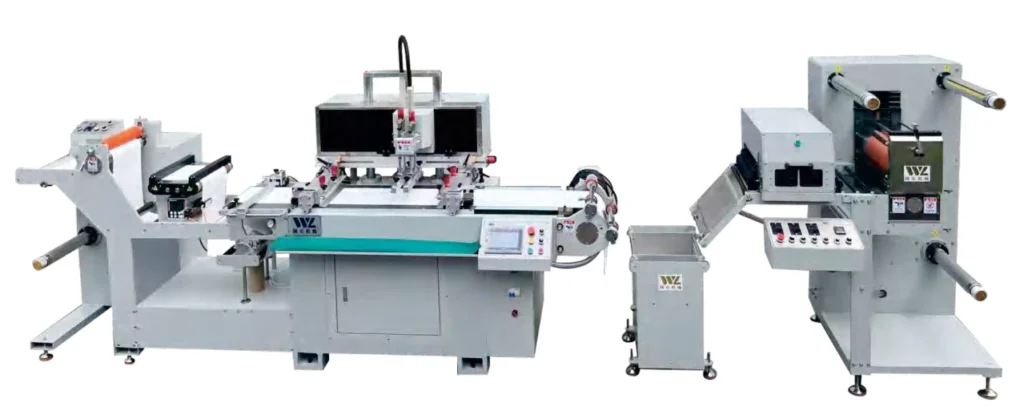

WL-350DW Screen Printing and Cold Foil Machine
Roll-to-roll screen printing with automatic registration and vertical cold foil, featuring a 350 mm maximum web width, a 330 × 450 mm print area and two-lamp UV curing.
View WL-350DW details

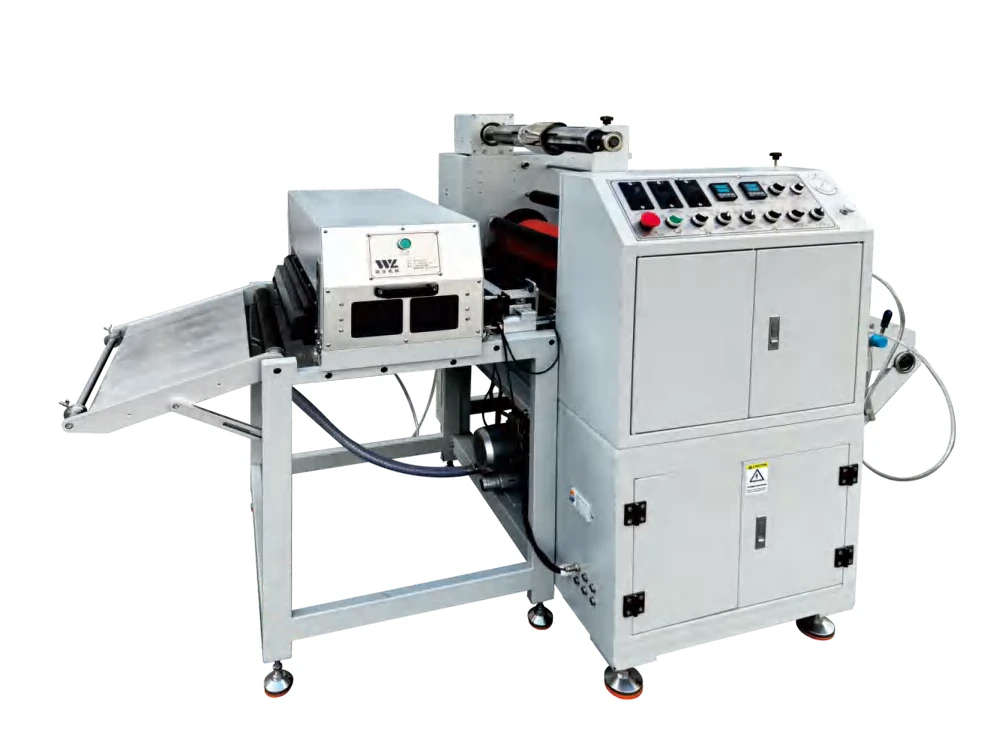

WL-500TB-LTJ Intermittent Cold Foil Stamping Machine
Intermittent cold foil stamping with mark tracking to help reduce foil-film use. Supports webs up to 500 mm wide and a listed foil speed of 0–15 m/min.
View WL-500TB-LTJ details

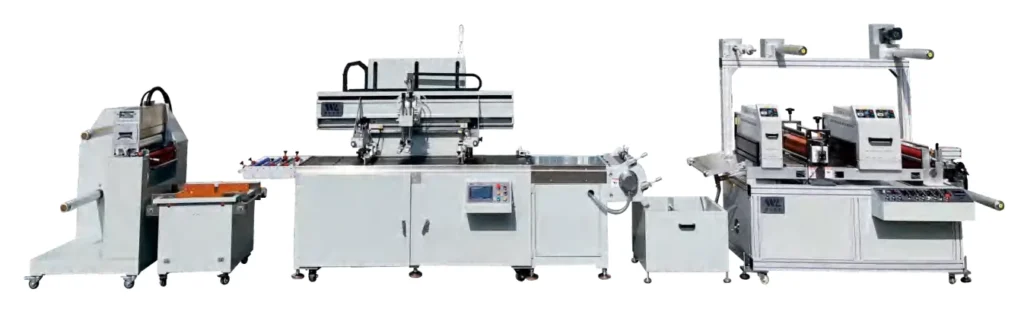

WL-50120D Long-Format Screen Printing and Cold Foil Machine
Screen printing and horizontal cold foil for roll-fed labels, with a 300 × 1200 mm print area, 510 mm maximum web width and UV drying equipment.
View WL-50120D details

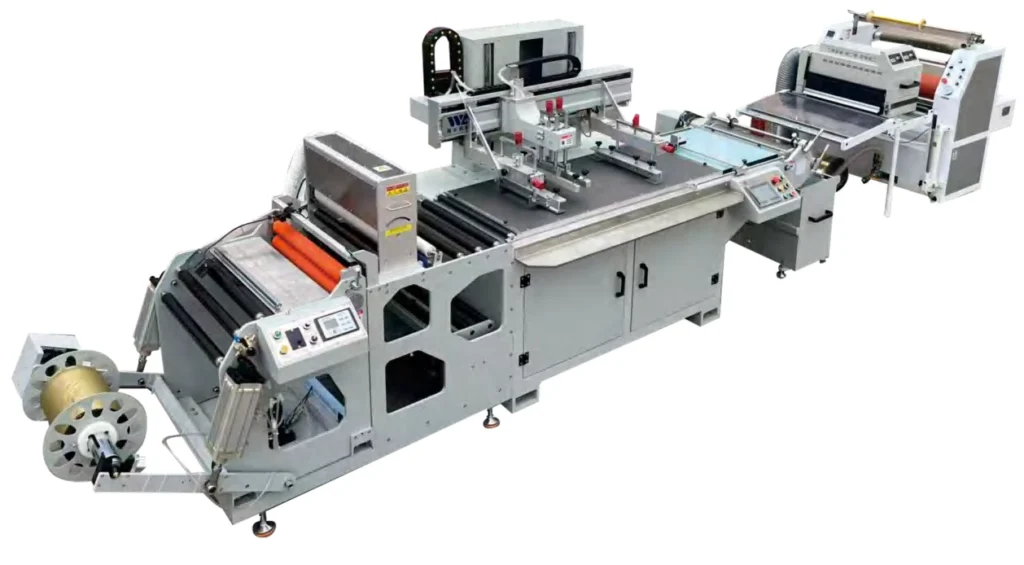

WL-6090D Screen Printing and Cold Foil Machine
Combine screen printing, two-lamp UV drying and cold foil in a roll-fed line with a 600 × 900 mm print area and a maximum web width of 610 mm.
View WL-6090D details

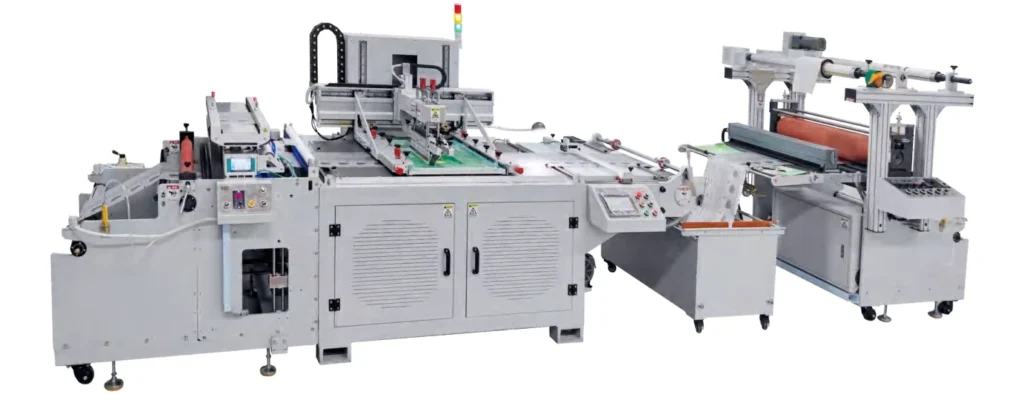

WL-850D Screen Printing and Cold Foil Machine
Screen printing and cold foil for roll-fed packaging materials up to 820 mm wide, with an 800 × 800 mm print area and a listed LED UV drying unit.
View WL-850D detailsBefore choosing a machine
What to review for your application
Substrate & finish
Share the material and the metallic effect you want to achieve.
Foil & adhesive
Confirm foil compatibility, adhesive choice and curing requirements.
Image & transfer area
Define the print format, foil area and registration needs.
Line integration
Review the job sequence and connections to existing equipment.

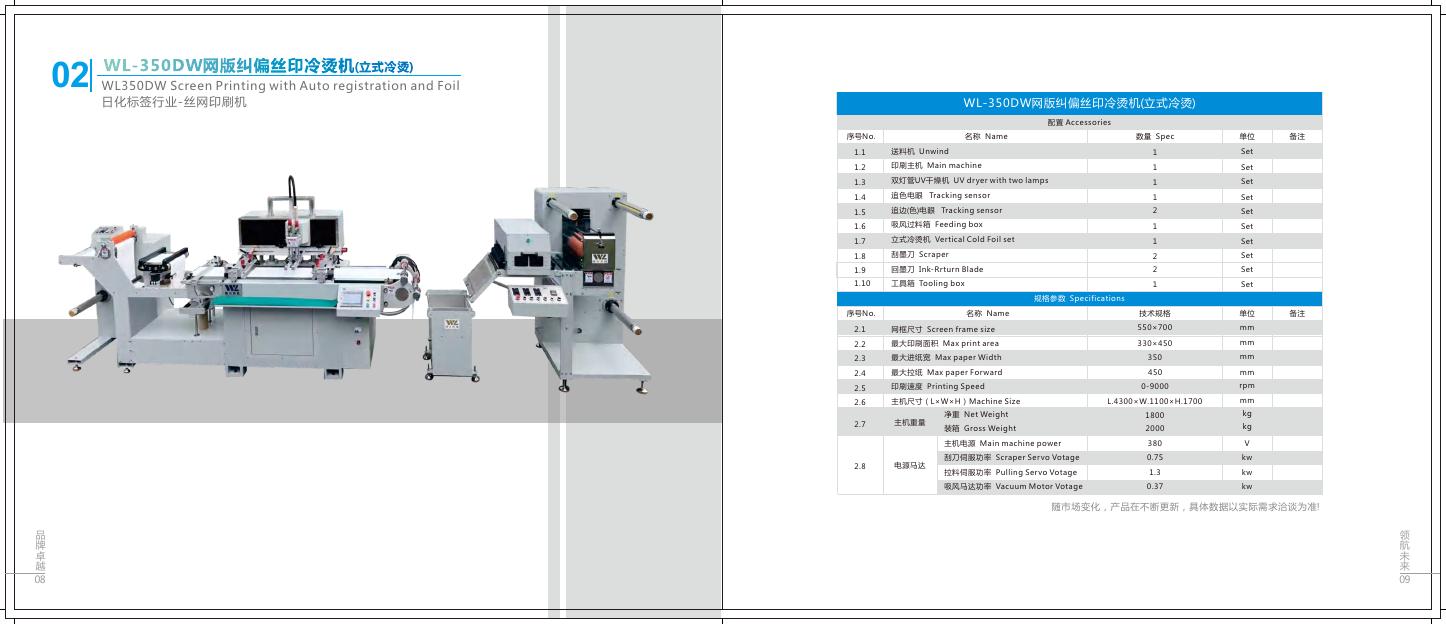

Catalogue references
Representative models
WL350DW, WL350LTJ, WL6090D, WL850D, WL500TB-LTJ
The catalogue includes combined print-and-foil configurations and separate cold-foil units. Available functions depend on the selected model.
