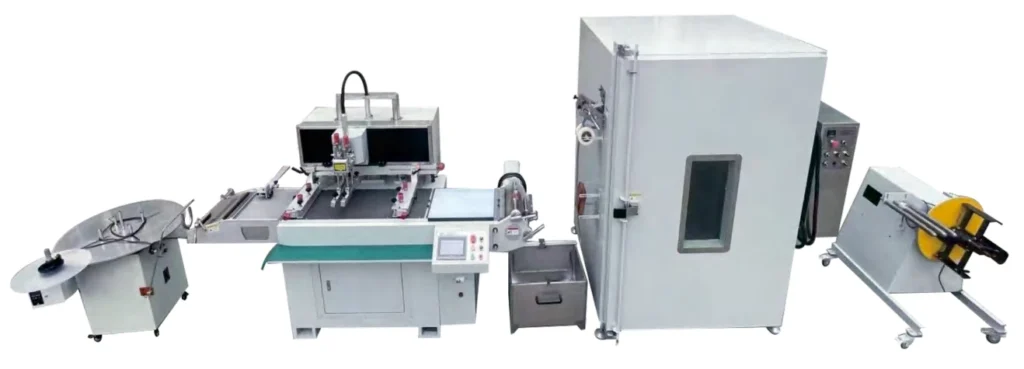

WL-350D Steel Plate Screen Printing Machine with Drying Oven
WL-350D steel plate screen printing configuration with right-feed, single-color printing, a 330 × 450 mm print area and a spring-type conveying oven.
View WL-350D detailsApplication-specific processes
Specialty Screen Printing Machines
These configurations serve different material paths and effects. WL-350D-CK-3D is the magnetic-effect UV configuration, WL-500GT uses cylinder-bed handling, and WL-500XW combines inclined printing with hot-air drying. Review the actual material and effect sample; the model names do not make these processes interchangeable.
For an engineering review, send the substrate and feed format, separate artwork layers, target effect, and the upstream and downstream equipment. The machine RFQ checklist identifies the remaining information to send.
Typical uses
- Surface-sensitive films
- Special ink processes
- Anti-counterfeit effects
Process overview
Choose the machine around the process requirement.
Some applications need a particular printing motion, material support method or ink effect. Describe the required result and handling constraints so the appropriate machine family can be evaluated.
Explore the equipment
Models in this family

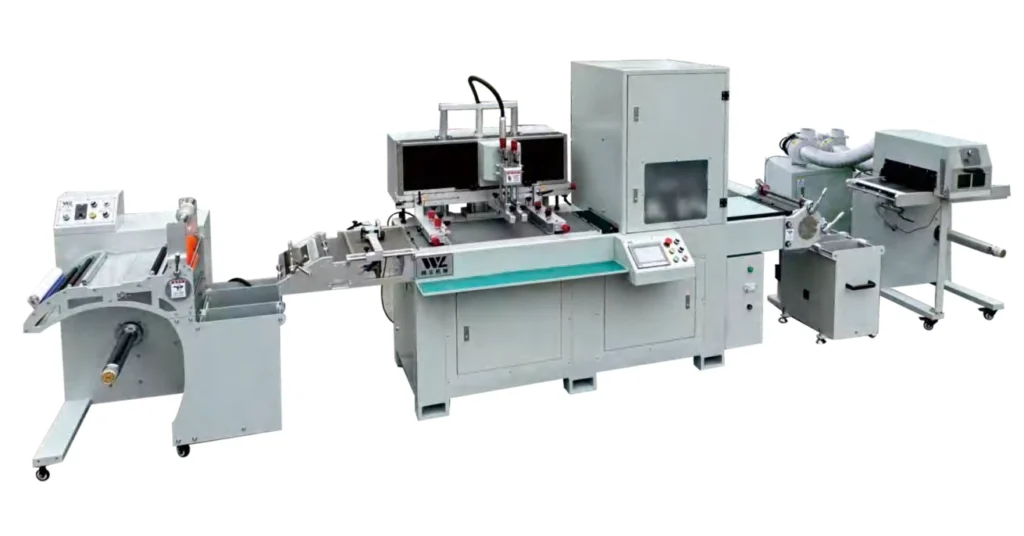

WL-350D-CK-3D Magnetic Effect UV Screen Printing Machine
Single-color screen printing with magnetic control and two-lamp UV drying for magnetic visual effects, with a 330 × 450 mm maximum print area.
View WL-350D-CK-3D details

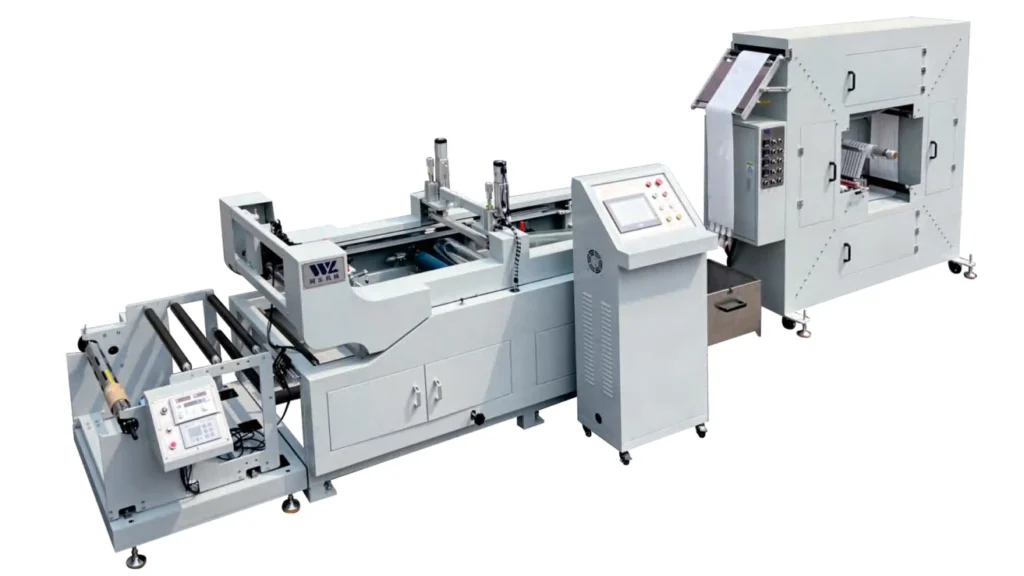

WL-500GT Cylinder-Bed Screen Printing Machine
Single-color cylinder-bed screen printing for roll-fed materials, with a drying oven and handling designed to reduce surface scratching. Maximum web width is 500 mm; listed print area is 500 × 800 mm.
View WL-500GT details

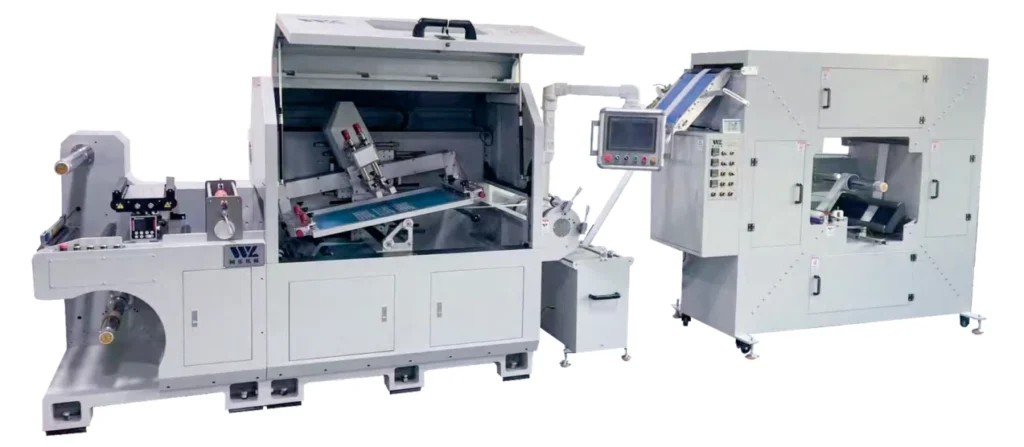

WL-500XW Inclined Screen Printing Machine with Hot-Air Dryer
Single-color inclined screen printing for webs up to 500 mm wide and a 450 × 450 mm print area, with unwinding, suction-assisted feeding and hot-air drying.
View WL-500XW detailsBefore choosing a machine
What to review for your application
Required effect
Describe the visual result and any reference samples.
Material protection
Specify surface sensitivity, support and handling constraints.
Ink system
Share the ink type and any special process requirements.
Machine selection
Review the printing method and complete workflow with an engineer.

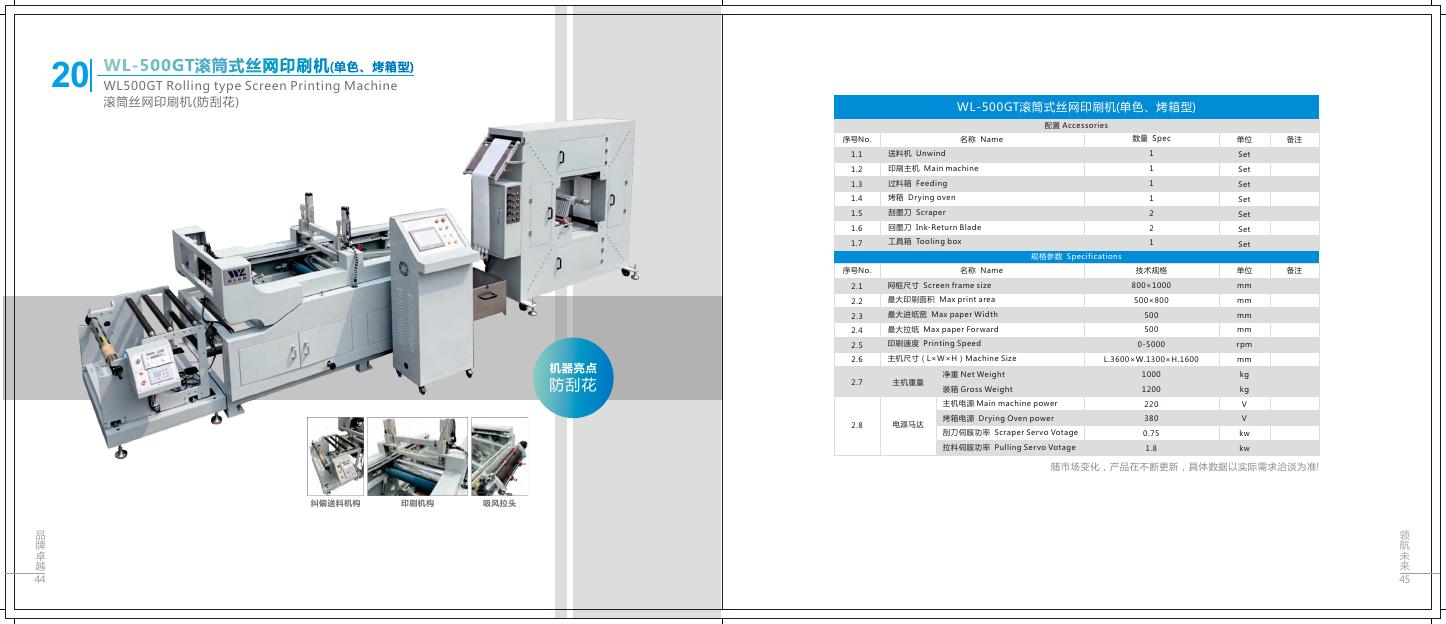

Catalogue references
Representative models
WL500XW, WL500GT, WL350D-CK-3D
These models serve different specialized processes; the listed capabilities are not combined in every machine.
