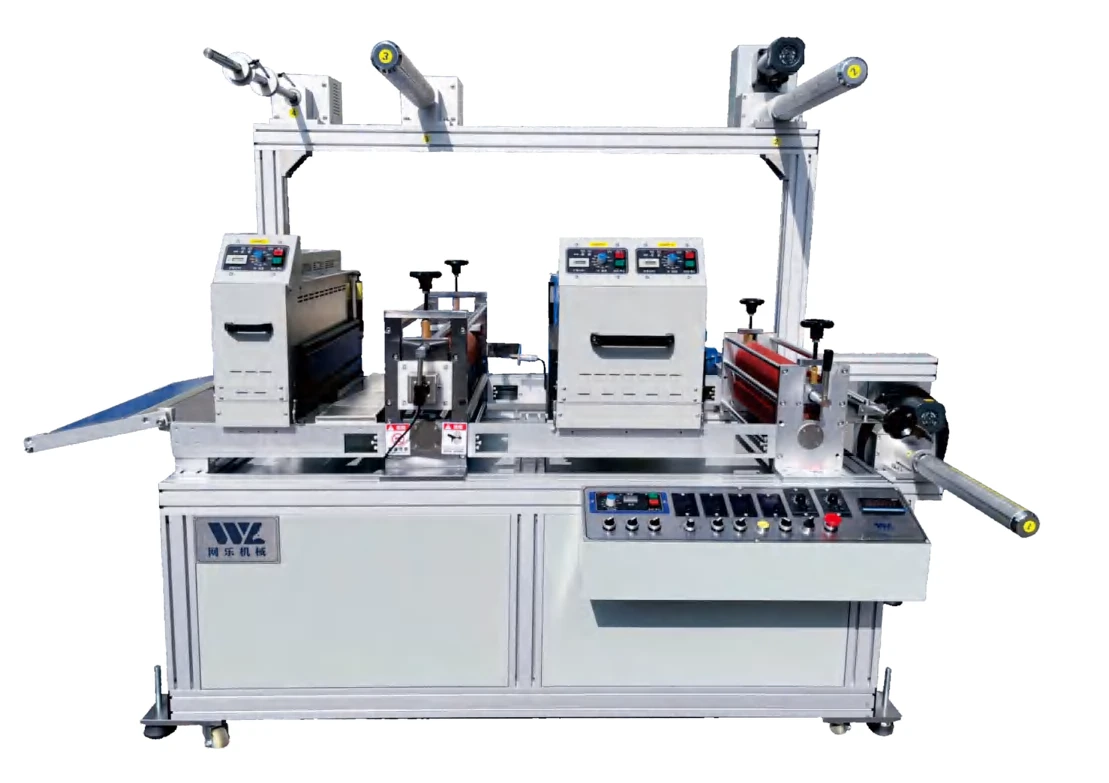

WL-350-LTJ
Horizontal cold foil stamping for webs up to 350 mm wide, with UV drying, foil supply and waste shafts, and rewinding. Listed foil speed: 0–15 m/min.
Request a QuoteThe WL-350-LTJ is a horizontal cold foil stamping machine for roll-fed label finishing. Its listed configuration combines a cold foil section, UV drying equipment, a heating roller, foil handling shafts and a rewinder.
The maximum web width is 350 mm. Rewinding is specified for a maximum roll diameter of 400 mm and a maximum load of 40 kg. The listed foil-speed range is 0–15 m/min; the production setting must be matched to the foil, adhesive, material and curing requirements.
Provide the substrate, foil specification, adhesive system and decoration artwork. Review adhesion and the required finish with representative samples before confirming operating settings. The catalogue does not list a screen-printing station as part of this model, so the upstream printing or adhesive-application process must be considered when planning the installation.
The stated machine dimensions are 2500 × 1100 × 1750 mm. The main machine supply is 220 V and the UV dryer supply is 380 V. Confirm the complete electrical load, roll-loading access and connection requirements with the final quotation.
For a combined printing and foil line, compare the WL-350DW screen printing and cold foil machine. Browse the screen printing and cold foil range for additional configurations.
Roll-fed label materials compatible with the selected cold foil film, adhesive and curing process. Confirm surface treatment, adhesion and heat sensitivity using production samples.
Cold foil decoration on roll-fed labels
Foil finishing integrated with an upstream printing or adhesive-application process
| Model | WL-350-LTJ |
|---|---|
| Process | Horizontal cold foil stamping |
| Maximum web width | 350 mm |
| Maximum rewind diameter | 400 mm |
| Maximum rewind load | 40 kg |
| Foil speed (listed range) | 0–15 m/min |
| Machine dimensions (L × W × H) | 2500 × 1100 × 1750 mm |
| Net weight | 200 kg |
| Gross weight | 230 kg |
| Main machine power supply | 220 V |
| UV dryer power supply | 380 V |
| Material-feed servo motor power | 0.75 kW |
| Vacuum motor power | 0.4 kW |
| UV drying configuration | One single-lamp unit and one two-lamp unit |
| Heating roller | Included in catalogue configuration |
Product questions
The WL-350-LTJ is a horizontal cold foil stamping machine for roll-fed finishing. Its listed equipment includes the cold foil section, UV dryers, a heating roller, foil supply and waste shafts, and a rewinder. A screen-printing station is not listed as part of this model.
The maximum web width is 350 mm. The catalogue specifies a maximum rewind diameter of 400 mm and a maximum rewind load of 40 kg. Confirm roll dimensions and shaft requirements with the selected configuration.
The catalogue lists a foil-speed range of 0–15 m/min. Achievable output depends on the substrate, foil, adhesive, decoration layout and curing requirements. Confirm production targets through application review rather than assuming the maximum speed for every job.
The equipment list includes one single-lamp UV dryer and one two-lamp UV dryer. A heating roller is also listed. Confirm the drying arrangement and process settings for the selected foil, adhesive and substrate.
The stated machine dimensions are 2500 × 1100 × 1750 mm. The main machine supply is 220 V and the UV dryer supply is 380 V. Confirm the full layout, total connected load, operator access and roll-loading space with the quotation.
Provide the label material and thickness, web width, foil and adhesive specifications, decoration artwork, print repeat and target output. Include the upstream process, roll dimensions, floor space and local electrical supply so integration requirements can be checked.
