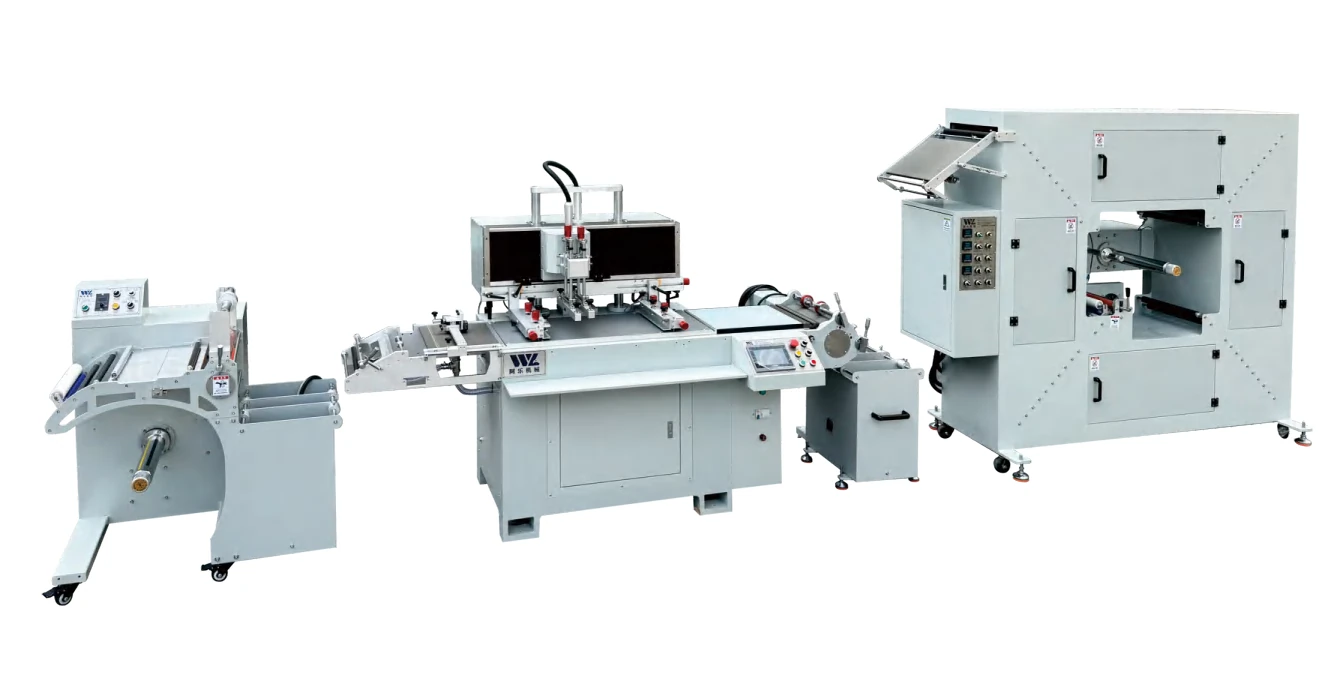

WL-350D
Left-feed, single-color screen printing with a drying oven for roll-fed labels, offering a 330 × 450 mm print area and a 350 mm maximum web width.
Request a QuoteThis WL-350D configuration combines a left-feed screen printing station with a drying oven for roll-fed label production. The catalogue identifies electronic-label printing as an application. Select this version when assessing an oven-drying process and a production layout with material entering from the left.
The maximum print area is 330 × 450 mm, with a maximum web width of 350 mm and a maximum feed length of 450 mm. The specified screen frame size is 550 × 700 mm. Check the artwork width, repeat and material margins against these separate limits.
Provide the label stock and proposed ink so print adhesion, drying and material handling can be evaluated together. For heat-sensitive substrates, review the material response under the intended oven conditions. Confirm registration requirements and practical output with the actual artwork, coverage and repeat during a production trial.
The main machine measures 2500 × 1100 × 1700 mm and has a listed 380 V supply. Request the complete line layout, oven electrical requirements and clearance for roll changes before preparing the installation.
Compare our roll-to-roll screen printing machines. The separately listed WL-350D UV configuration uses a different drying process; specify the oven version when requesting this machine.
Roll-fed label substrates compatible with the selected screen-printing ink and oven-drying conditions. Confirm material thickness, surface treatment, thermal response and handling requirements using samples.
Single-color electronic-label printing
Roll-fed label jobs using oven-dried screen-printing inks
Production layouts requiring material entry from the left
| Model | WL-350D |
|---|---|
| Configuration | Left-feed, single-color, drying oven |
| Screen frame size | 550 × 700 mm |
| Maximum print area | 330 × 450 mm |
| Maximum web width | 350 mm |
| Maximum feed length | 450 mm |
| Main machine dimensions (L × W × H) | 2500 × 1100 × 1700 mm |
| Net weight | 1300 kg |
| Gross weight | 1800 kg |
| Main machine power supply | 380 V |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.3 kW |
| Vacuum motor power | 0.37 kW |
Product questions
This page describes the left-feed, single-color WL-350D with a drying oven. It is a roll-fed screen printing configuration listed for electronic-label printing. Specify the feed direction and oven-drying requirement when requesting a quotation, because the WL-350D range also includes other configurations.
The maximum print area is 330 × 450 mm, the maximum web width is 350 mm and the maximum feed length is 450 mm. The screen frame size is 550 × 700 mm. The material-handling width is different from the maximum printable width.
The catalogue lists one unwinding unit, one main printing machine, two material-feeding sections and one drying oven. It also lists two squeegees, two ink-return blades and one tooling box. Confirm the final equipment arrangement and oven specification in the quotation.
This configuration uses a drying oven, while the separately listed UV configuration uses UV drying equipment. The appropriate choice depends on the selected ink, substrate and required process. Have the material and ink reviewed before selecting the drying configuration.
The listed main machine dimensions are 2500 × 1100 × 1700 mm, with a 380 V main machine supply, 1300 kg net weight and 1800 kg gross weight. These dimensions describe the main machine. Request a complete line drawing, oven electrical schedule and operating clearances for the final configuration.
Send the label material and thickness, web width, reel details, artwork, print area and repeat, ink information, registration requirements and target output. Include the preferred feed direction and available floor space. Confirm drying conditions and practical production speed using the actual job.
