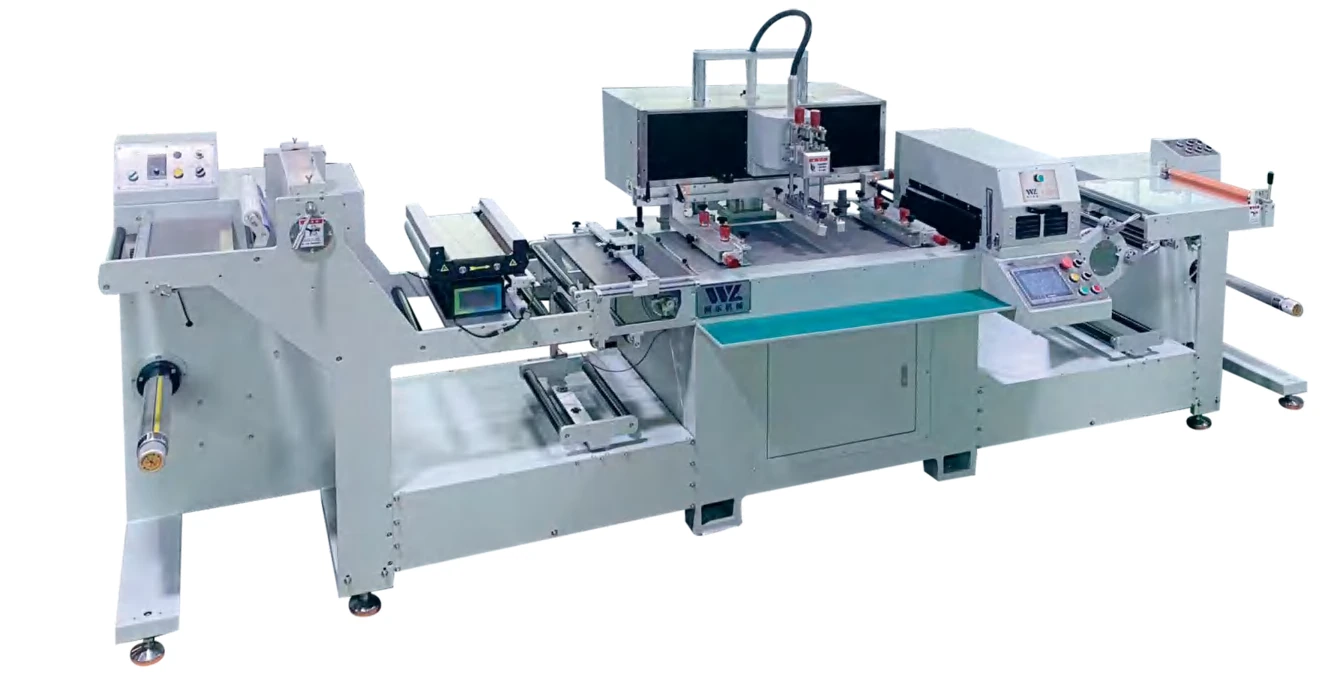

WL-350D-YT
Integrated single-color roll-to-roll screen printing with a water-cooled, two-lamp UV dryer. Supports a 350 mm web and a maximum print area of 330 × 450 mm.
Request a QuoteThe WL-350D-YT brings automatic unwinding, single-color screen printing, UV drying and automatic rewinding into an integrated roll-to-roll arrangement. Its catalogue configuration includes a water-cooling machine and a two-lamp UV dryer, with full servo control identified as a machine feature.
The maximum web width is 350 mm, with a maximum print area of 330 × 450 mm and a maximum feed length of 450 mm. The specified screen frame is 550 × 700 mm. These working dimensions provide the starting point for checking artwork size and print repeat.
The catalogue identifies shrink films and aluminum-plastic laminate films as applications for the water-cooled UV arrangement. Actual suitability depends on the film construction, ink, surface treatment and curing conditions. Review the printed result and dimensional stability with representative material before confirming production settings.
For installation planning, the listed main machine dimensions are 2000 × 1100 × 1700 mm and the main power supply is 380 V. Confirm the space and utilities needed for cooling equipment, roll loading, operation and maintenance with the final layout.
Compare the WL-350D UV screen printer, or browse the roll-to-roll screen printing range to review other line configurations.
Roll-fed label materials compatible with UV screen-printing inks. Shrink films and aluminum-plastic laminate films require sample evaluation of heat sensitivity, curing and dimensional stability.
Single-color roll-fed label printing
UV screen printing on heat-sensitive films, subject to material and curing trials
| Model | WL-350D-YT |
|---|---|
| Printing configuration | Single-color, integrated roll-to-roll |
| UV drying configuration | One water-cooled unit with two lamps |
| Cooling equipment | Water-cooling machine included in catalogue configuration |
| Screen frame size | 550 × 700 mm |
| Maximum print area | 330 × 450 mm |
| Maximum web width | 350 mm |
| Maximum feed length | 450 mm |
| Main machine dimensions (L × W × H) | 2000 × 1100 × 1700 mm |
| Net weight | 1300 kg |
| Gross weight | 1800 kg |
| Main machine power supply | 380 V |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.3 kW |
| Vacuum motor power | 0.37 kW |
Product questions
The catalogue lists integrated automatic unwinding, a screen-printing machine, a two-lamp UV dryer, a water-cooling machine and automatic rewinding. Three scrapers, three ink-return blades and a tooling box are also listed.
The maximum web width is 350 mm, the maximum print area is 330 × 450 mm and the maximum feed length is 450 mm. The specified screen frame size is 550 × 700 mm.
The catalogue identifies these heat-sensitive materials as applications for the water-cooled UV arrangement. Suitability must be checked with the actual film, ink and curing conditions. Sample trials should verify print quality, adhesion and dimensional stability.
No universal result should be assumed. Water cooling forms part of the listed UV configuration, but film behavior also depends on its construction, thickness, heat sensitivity, ink and process settings. Confirm performance through material trials.
The catalogue lists main machine dimensions of 2000 × 1100 × 1700 mm and a 380 V main power supply. Confirm the full footprint, cooling-equipment requirements, electrical load and access space with the final configuration.
Provide the substrate and thickness, web width, artwork, print repeat, ink system and target output. For heat-sensitive films, include temperature limits or material samples, together with roll dimensions, available space and local utilities.
