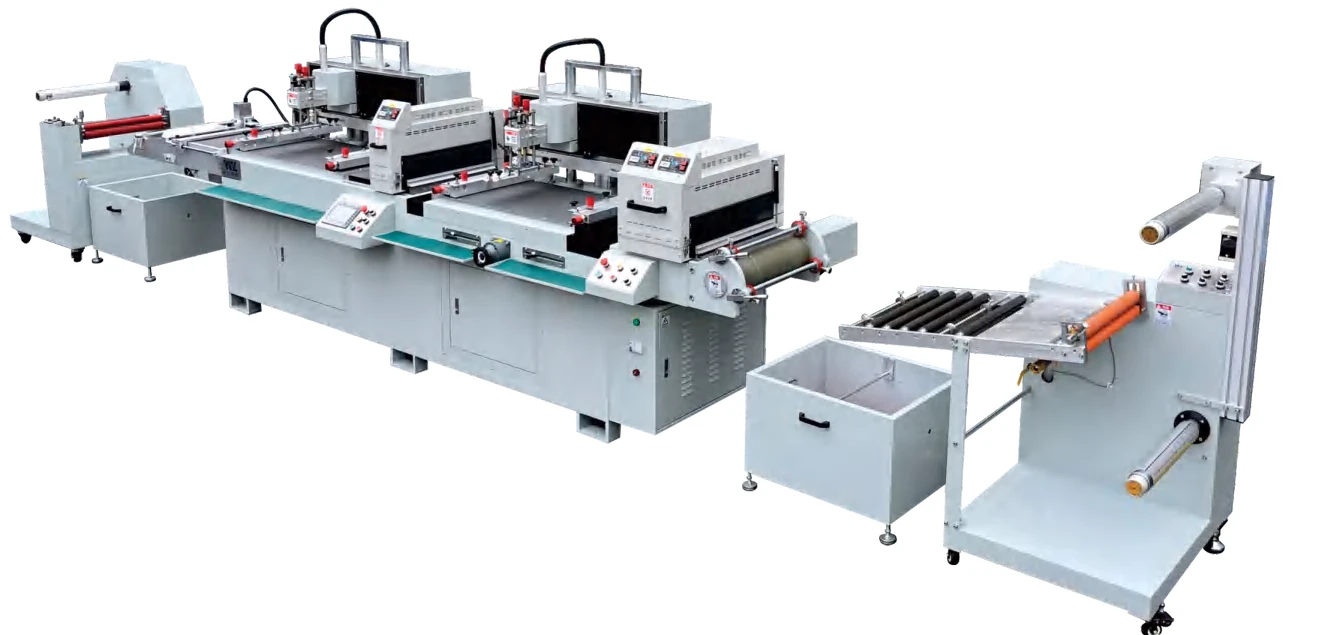

WL-5045S
Two-color UV screen printing for roll-fed labels, with a 500 mm maximum web width and a 500 × 450 mm print area. Includes two UV drying units.
Request a QuoteThe WL-5045S UV version is a two-color roll-to-roll screen printing machine for label production. It combines a two-station printing arrangement with two UV drying units, supporting jobs that require two screen-printed colors within one configured line.
The maximum web width is 500 mm and the maximum print area is 500 × 450 mm. The specified screen frame size is 700 × 700 mm, with a maximum feed length of 450 mm. Confirm the artwork layout, print repeat and material-handling allowance before preparing production screens.
Provide both color separations, registration marks and the alignment tolerance required between colors. Share the label stock, surface treatment and ink specifications so printing and UV-curing conditions can be reviewed using representative samples.
The listed main machine dimensions are 4300 × 1300 × 1700 mm. The main machine supply is 220 V and the UV dryer supply is 380 V. Confirm the complete line layout, total connected load and space for roll loading and operator access with the quotation.
For a narrower two-color line, compare the WL-350S two-color UV screen printer, which has a 350 mm maximum web width. Browse the roll-to-roll screen printing range for additional formats and color configurations.
Roll-fed label materials compatible with the selected screen-printing inks and UV-curing process. Confirm material thickness, surface finish and heat sensitivity using representative samples.
Two-color labels for personal-care and household products
Roll-to-roll UV screen printing jobs requiring up to a 500 mm web width
| Model | WL-5045S |
|---|---|
| Printing configuration | Two-color, UV version |
| UV drying configuration | Two units, each with two lamps |
| Screen frame size | 700 × 700 mm |
| Maximum print area | 500 × 450 mm |
| Maximum web width | 500 mm |
| Maximum feed length | 450 mm |
| Main machine dimensions (L × W × H) | 4300 × 1300 × 1700 mm |
| Net weight | 2000 kg |
| Gross weight | 2300 kg |
| Main machine power supply | 220 V |
| UV dryer power supply | 380 V |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.8 kW |
| Vacuum motor power | 0.37 kW |
Product questions
Yes. This page describes the two-color UV version of the WL-5045S. The catalogue configuration lists two UV drying units, each fitted with two lamps. Match the curing process to the chosen inks and label material.
The maximum web width is 500 mm, the maximum print area is 500 × 450 mm and the maximum feed length is 450 mm. The specified screen frame size is 700 × 700 mm.
The WL-5045S supports a 500 mm maximum web width and a 500 × 450 mm maximum print area. The WL-350S is listed for a 350 mm web and a 330 × 450 mm print area. Compare the required artwork format and installation layout when selecting between them.
Yes. The equipment list includes an unwinder, two feeding units and a rewinder alongside the printing machine and UV dryers. Confirm roll dimensions, material characteristics and handling requirements with the selected configuration.
The listed main machine dimensions are 4300 × 1300 × 1700 mm. The main machine uses a 220 V supply and the UV dryers a 380 V supply. Confirm the complete footprint, electrical load and operating clearances before installation.
Provide the two-color artwork, material and thickness, web width, print repeat, registration requirement, ink system and target output. Include roll dimensions, available floor space and local electrical supply so printing, curing and web handling can be reviewed.
