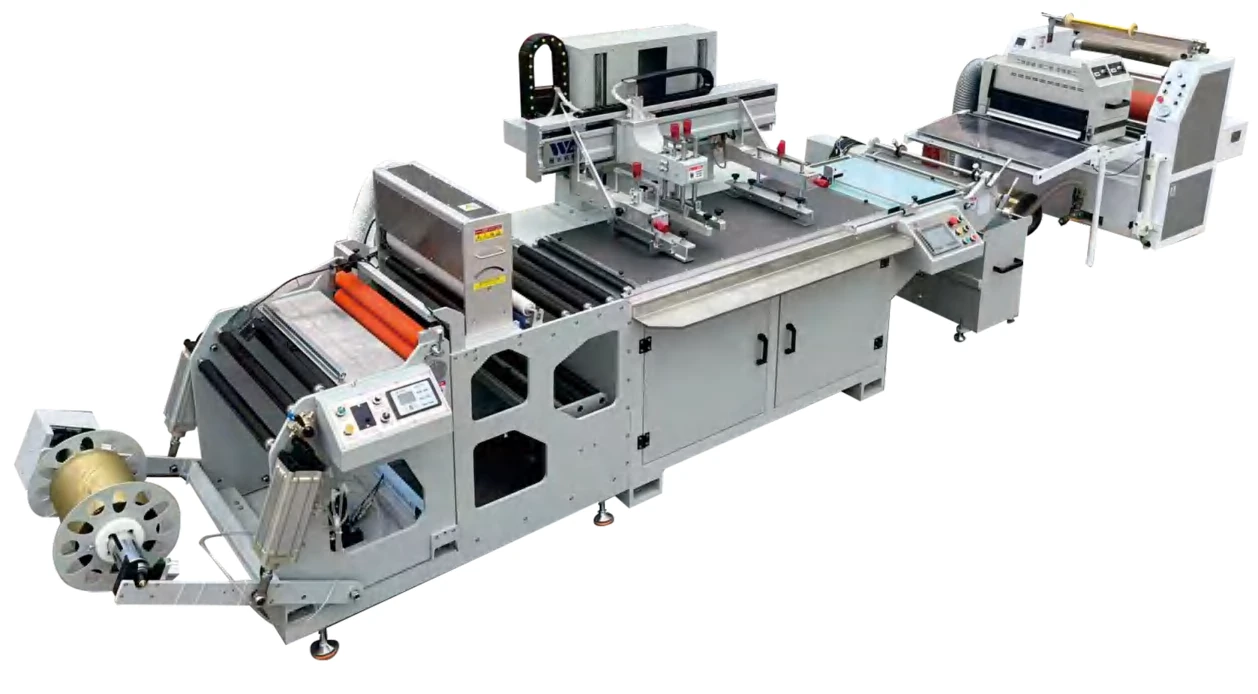

WL-6090D
Combine screen printing, two-lamp UV drying and cold foil in a roll-fed line with a 600 × 900 mm print area and a maximum web width of 610 mm.
Request a QuoteThe WL-6090D combines screen printing, UV drying and cold foil equipment in a roll-fed production configuration. It is listed for flexible packaging applications and provides a maximum print area of 600 × 900 mm on material up to 610 mm wide. This gives buyers a defined format to check against their artwork, web width and print repeat.
The machine uses an 800 × 1100 mm screen frame and has a maximum feed length of 900 mm. Review the usable image area and material margins when preparing the print layout. Ink, adhesive and foil selection should be matched to the substrate and the intended finishing result.
Supply production samples, artwork and the intended foil before confirming the configuration. Trials can assess ink adhesion, UV drying, foil transfer and material handling. The suitable operating speed depends on the print coverage, substrate, consumables and required finish; request performance figures for your actual job.
The main machine measures 3000 × 2100 × 1600 mm, with a listed net weight of 1600 kg. The specified supply for the main machine and UV dryer is 380 V. Confirm the complete line footprint, electrical load and access for reel changes before installation. Individual power ratings are shown in the specification table and should be reviewed as part of the final site plan.
Explore more screen printing and cold foil machines, or compare the WL-350DW when reviewing alternative production configurations.
Roll-fed substrates for screen printing and cold foil transfer, including flexible packaging materials subject to sample testing. Confirm ink, adhesive, foil and substrate compatibility before selecting the configuration.
Screen printing and cold foil decoration on roll-fed materials
Flexible packaging print and finishing applications
Jobs requiring a print area up to 600 × 900 mm
| Model | WL-6090D |
|---|---|
| Process configuration | Screen printing, two-lamp UV drying and cold foil |
| Screen frame size | 800 × 1100 mm |
| Maximum print area | 600 × 900 mm |
| Maximum web width | 610 mm |
| Maximum feed length | 900 mm |
| Main machine dimensions (L × W × H) | 3000 × 2100 × 1600 mm |
| Net weight | 1600 kg |
| Gross weight | 1800 kg |
| Main machine and UV dryer power supply | 380 V |
| UV dryer power | 2 × 6 kW |
| Cold foil unit power | 8 kW |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.8 kW |
| Vacuum motor power | 0.37 kW |
Product questions
The WL-6090D configuration combines roll-fed screen printing, a two-lamp UV drying unit and a cold foil unit. It also lists unwinding and material-feeding equipment. Corona treatment is optional and should be selected according to the substrate and process.
The maximum print area is 600 × 900 mm and the maximum web width is 610 mm. The screen frame size is 800 × 1100 mm, with a maximum feed length of 900 mm. Check the artwork, repeat and required margins before preparing screens.
The catalogue identifies flexible packaging as an application. Suitability for a particular material depends on its surface, thickness and compatibility with the selected ink, adhesive, foil and UV process. Provide samples for print and foil-transfer testing before confirming the setup.
No. The equipment list marks corona treatment as an option. Share details of the substrate and its surface treatment so the need for a corona unit can be reviewed and included in the quotation when appropriate.
The main machine dimensions are 3000 × 2100 × 1600 mm, and the main machine and UV dryer supply is listed as 380 V. UV dryer power is 2 × 6 kW and cold foil unit power is 8 kW. Confirm the complete line footprint, total electrical load and service clearance for the ordered configuration.
Send the material type and thickness, web width, reel dimensions, artwork, print size and repeat, ink or adhesive system, foil details and target output. Include site space and power information. Request an operating speed and registration specification based on the agreed production trial.
