Choosing a Roll-Fed Film Drying Oven: Pre-Shrink, Inline or Constant Tension?
Film that changes size after heating, coating that remains tacky at rewinding, and a web that wrinkles in the oven call for different checks. The WL-500-YSS-KX is listed for pre-shrink treatment. The WL-500ZY-KX is an inline dryer with a left-in, right-out web path. The WL-650-HZL-KX is a constant-tension configuration. Identify where the fault appears in your process before choosing which one to test.
Locate the problem on the web path
A film may need conditioning before printing because later heat shifts its dimensions. Wet ink or coating creates a drying question after application. Wrinkles during heating point to web handling as well as temperature. Write down where the problem first appears; an oven photograph will not tell you which process step needs attention.
Sketch the route from incoming roll to finished roll, including printing or coating, drying and inspection. Add the web direction, width, thickness, core and roll sizes, and threading access. For an existing line, photographs of the connection points and a dimensioned layout will help the supplier place the oven in the right position.
What the three catalogue entries actually say
The linked model pages and supplied 2026 catalogue give the values below. “Material storage length” describes web held in the machine arrangement; it gives neither the cabinet length nor a confirmed heated exposure time.
| Model | Listed role | Web width | Heating / material storage | Temperature / electrical |
|---|---|---|---|---|
| WL-500-YSS-KX | Pre-shrink drying oven | Maximum 500 mm | Four heating zones; 60 m listed storage | Working temperature requires confirmation; 380 V, 28 kW listed power |
| WL-500ZY-KX | Inline oven; left in, right out | Maximum 500 mm | Four heating areas; 60 m listed storage | 120°C listed maximum; 380 V, 22 kW oven power |
| WL-650-HZL-KX | Constant-tension drying oven | Usable width requires written confirmation | Four heating zones; 65 m listed storage | 120°C listed maximum; 380 V, 23 kW listed power |
The WL-650-HZL-KX source table has an inconsistent width entry. Its model name cannot be used as approval for a 650 mm roll; request the usable width in writing. The source also leaves the WL-500-YSS-KX working temperature and cabinet dimensions unclear, so those figures are left out here. The quotation should carry the approved dimensions and settings for the ordered configuration.
When film needs conditioning before printing

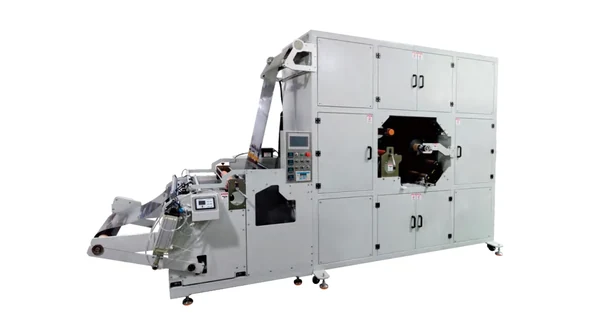

The WL-500-YSS-KX is listed for pre-shrink treatment. Its stated applications include film for membrane switches, diffusers, heating films and flexible circuits. Those examples do not provide a recipe for a particular film. Heat may change its length, width, flatness or surface, and the downstream artwork determines which changes matter.
Measure one material lot before treatment, just afterward and at the later step where registration matters. Record the oven settings, winding and rest time. Run treated and untreated film through the same downstream process to see whether conditioning helps. The catalogue gives no reliable working-temperature figure for this model, so obtain an approved range and installation drawing for the proposed order.
When wet ink or coating needs inline drying

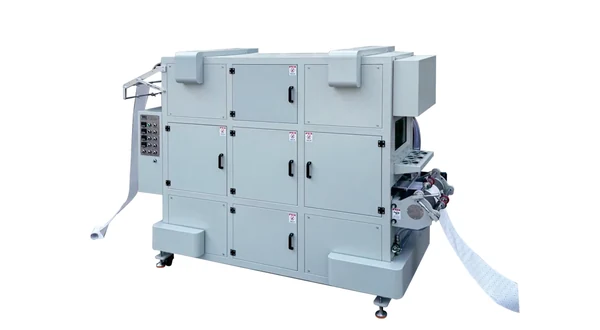

The WL-500ZY-KX is a left-in, right-out inline oven listed for webs up to 500 mm wide. Its entry gives a 120°C maximum, four heating areas, 60 m of material storage and cabinet dimensions of 2850 × 1150 × 2050 mm. These figures help place the cabinet on a preliminary layout. The installation drawing still needs the connections, loading space, service access and ventilation.
Define the result at the oven exit: dry to the touch, ready for another print layer, or safe to rewind. Provide the ink or coating, coverage and film’s heat limit. The listed 120°C is a maximum, not a setting for every job. Drying time also depends on the actual heated path and running speed; 60 m of material storage alone cannot establish it. For a UV-versus-thermal decision, the UV versus hot-air guide covers the ink and substrate questions.
When the heated web is hard to control

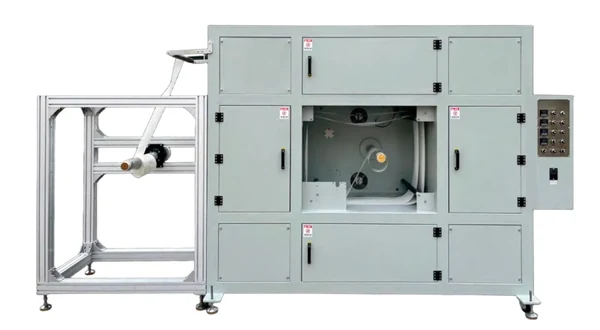

The WL-650-HZL-KX is listed as a constant-tension oven with four heating zones, a 120°C maximum and 65 m of material storage. Its stated dimensions are 4260 × 1480 × 2460 mm. Review it when the film’s path and tension through heat are part of the problem. The catalogue does not verify a tension range or usable web width, so both need to be specified for the proposed line.
Bring ordinary production rolls, including the narrowest and widest sizes you plan to run. Show the defect: a telescoped roll, wrinkles, damaged edges, distorted registration marks or coating that sticks after winding. Measure tension-related defects and dimensional change before and after heating. The quotation should show the tension-control arrangement, usable width and the test’s pass/fail method.
A rewinder does a different job
The WL-500JPDJ is a web-guiding rewinder in the same equipment category. It has a listed 500 mm maximum web width, guiding unit and length counter. If the roll builds poorly after drying, examine the rewinding stage as well as the oven. Its listed 50 m/min maximum applies to the rewinder; the complete printing and drying line needs its own speed assessment.
Run a trial that follows the film beyond the oven
- Use film from ordinary production. Record its grade, thickness, coating, width, core and reel size.
- Mark the dimensions, alignment points, surface condition or dryness that will decide acceptance after the next production step.
- Document the web direction, neighboring machines, expected speed, threading access and utilities.
- Run the test that fits the fault: compare treated and untreated film for pre-shrink work; inspect drying and winding on an inline job; measure tension-related defects on a constant-tension proposal.
Keep the results with the line drawing, electrical schedule, usable-width confirmation and proposed operating window. The machine RFQ checklist helps collect these details for a quotation. The drying and web-handling equipment page lists the current models.
Questions to settle before ordering
Does 60 m of material storage mean 60 m of floor space?
It describes web held in the machine arrangement. Use cabinet and full-line drawings for floor planning. The figure also cannot be converted into a heated exposure time without the actual path and speed.
Can the WL-650-HZL-KX take a 650 mm roll?
The catalogue’s width entry is inconsistent. Supply your roll width and obtain written confirmation of the usable path and threading arrangement.
Is 120°C the operating temperature?
It is the listed maximum for the WL-500ZY-KX and WL-650-HZL-KX. Set an operating range through a material trial with the actual ink or coating.
Do the listed power figures cover the complete line?
The table repeats figures for individual catalogue entries. Request an electrical schedule for the quoted oven, drives, extraction and adjacent equipment.
Sources: the linked Winshol model pages and supplied 2026 equipment catalogue. The three machine photographs come from that catalogue; the featured image is a conceptual illustration. Confirm operating settings, usable width, utilities and acceptance results for the ordered configuration and actual film.
