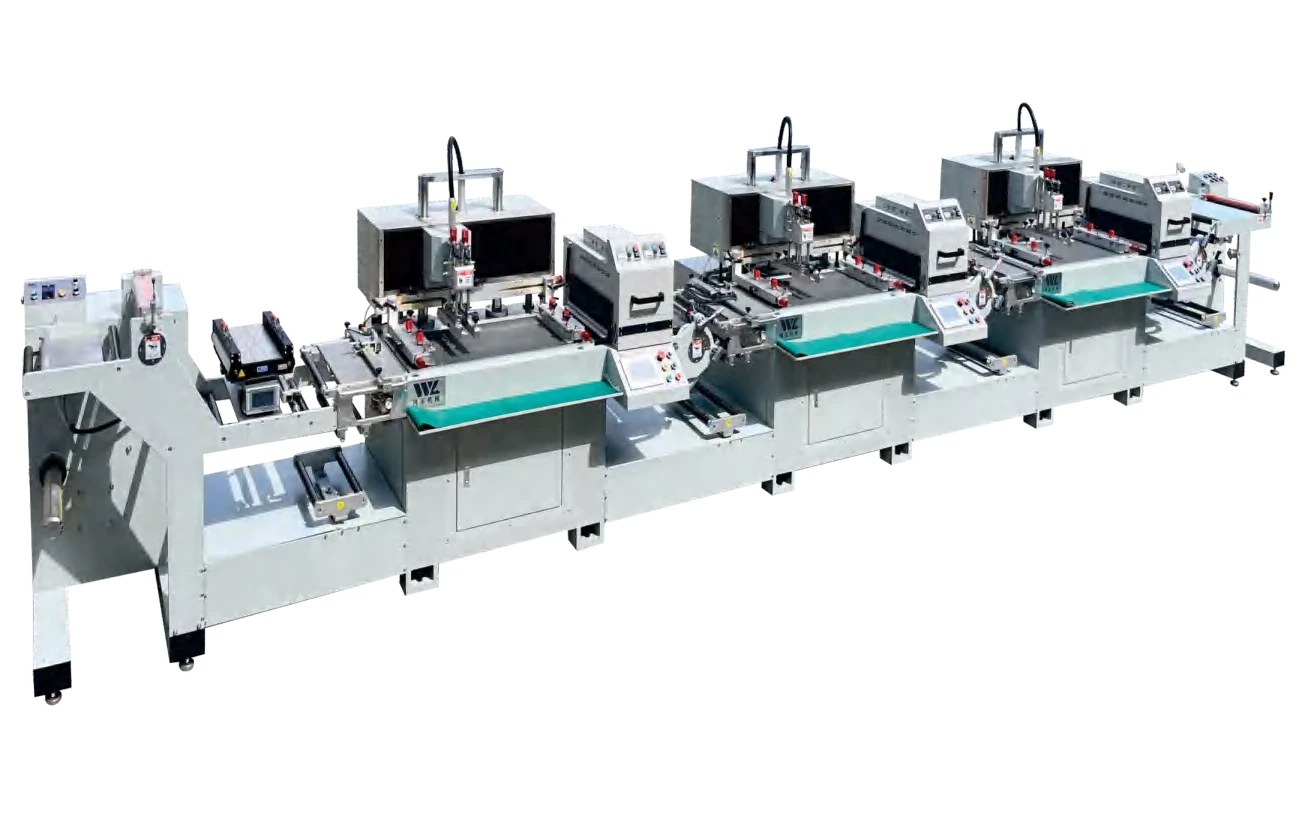

WL-350-3C
Three-color roll-to-roll screen printing with three UV drying units and guided unwinding. Maximum print area: 330 × 450 mm, with a listed 450 mm web width.
Request a QuoteThe WL-350-3C combines three screen-printing stations, three UV drying units and guided unwinding in a roll-to-roll production line. It is intended for jobs that need multiple screen-printed colors or coating stages within one configured line.
The specified maximum print area is 330 × 450 mm. The catalogue lists a maximum web width of 450 mm, a maximum feed length of 450 mm and a 550 × 600 mm screen frame. Confirm the usable width and artwork layout with the final machine configuration.
The catalogue identifies label, packaging-paper and scratch-off coating applications. Suitability depends on the substrate, ink system, coating requirements and curing conditions. Provide material samples and artwork, including registration marks and the alignment tolerance required between stations.
Discuss the number of colors, coating order, print repeat and target output before selecting the line. For installation planning, the listed machine dimensions are 9500 × 1200 × 1700 mm, with 380 V supplies for the machine and UV equipment. Allow additional space for loading rolls, operation and maintenance, and confirm the complete electrical schedule.
For two-color production, compare the WL-350S two-color UV screen printer. Browse the roll-to-roll screen printing range for other configurations.
Roll-fed label and packaging materials compatible with the selected screen-printing inks and UV-curing process. Confirm substrate thickness, surface treatment and heat sensitivity with production samples.
Three-color roll-fed label printing
Packaging paper and scratch-off coating applications, subject to ink and substrate review
| Model | WL-350-3C |
|---|---|
| Printing configuration | Three colors, three printing stations |
| UV drying configuration | Three units, each with two lamps |
| Screen frame size | 550 × 600 mm |
| Maximum print area | 330 × 450 mm |
| Maximum web width | 450 mm (catalogue value) |
| Maximum feed length | 450 mm |
| Machine dimensions (L × W × H) | 9500 × 1200 × 1700 mm |
| Net weight | 3000 kg |
| Gross weight | 3500 kg |
| Main machine power supply | 380 V |
| UV dryer power supply | 380 V |
| Squeegee servo motor power | 0.75 kW × 3 |
| Material-feed servo motor power | 1.3 kW × 3 |
| Vacuum motor power | 0.37 kW × 3 |
Product questions
The catalogue configuration lists three printing stations and three UV drying units, each with two lamps. The color or coating sequence should be configured around the artwork, ink system and required curing process.
The catalogue lists a maximum web width of 450 mm, a maximum print area of 330 × 450 mm and a maximum feed length of 450 mm. The screen frame size is 550 × 600 mm. Confirm the usable job format with the final configuration.
Yes. The equipment list includes an integrated automatic unwinder with web guidance and a rewinder. Share the roll dimensions and material details so roll handling and the complete line layout can be checked.
The catalogue identifies label, packaging-paper and scratch-off coating applications. Suitability must be reviewed against the actual substrate, ink or coating system, required finish and UV-curing limits; production samples are recommended.
The listed machine dimensions are 9500 × 1200 × 1700 mm. The main machine and UV dryers are specified for 380 V supplies. Confirm the full installation footprint, total electrical load and operating clearances before arranging the site.
Provide the material and thickness, web width, artwork, number of colors, print repeat, registration requirements, ink system and target output. Include roll dimensions, floor space and local electrical supply for configuration review.
