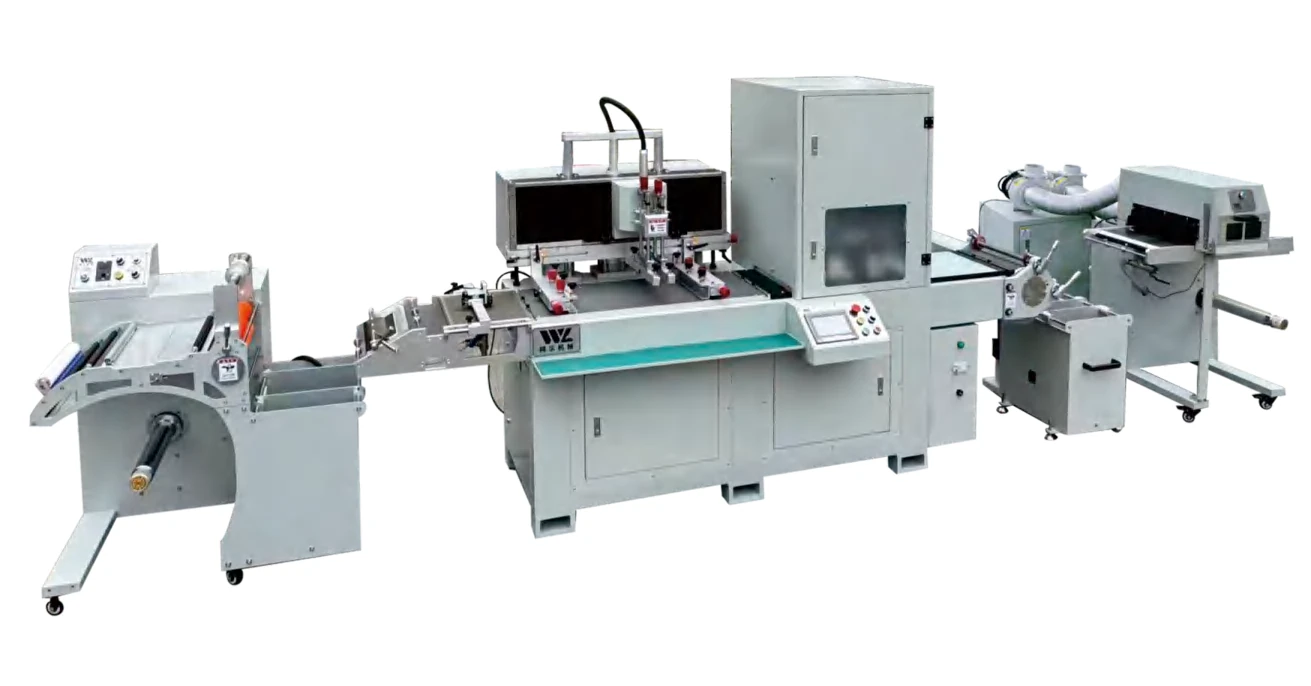

WL-350D-CK-3D
Single-color screen printing with magnetic control and two-lamp UV drying for magnetic visual effects, with a 330 × 450 mm maximum print area.
Request a QuoteThe WL-350D-CK-3D is a single-color screen printing machine with magnetic control equipment and UV drying. The catalogue lists magnetic visual effects such as rolling bars, rings and spheres for security-printing applications. The configuration combines screen printing, magnetic-effect processing and UV drying in a roll-fed workflow.
Its maximum print area is 330 × 450 mm, with a maximum web width of 350 mm and a maximum feed length of 450 mm. Check the artwork and material margins against these separate limits when preparing a job.
Share a reference for the intended visual effect together with the substrate, artwork and proposed magnetic-effect ink. Sample testing helps confirm print quality, the magnetic appearance, UV drying and adhesion. The final result depends on the selected consumables and process settings, so agree on an approved sample before confirming production performance.
The main machine measures 2500 × 1100 × 1700 mm, with a listed net weight of 1300 kg and a 380 V main machine supply. Request the complete line layout and electrical schedule to allow for the magnetic equipment, UV dryer, roll handling and operator access.
Explore our specialty screen printing machines, or review the WL-350D UV screen printing machine when comparing configurations for conventional single-color UV printing.
Roll-fed substrates compatible with the selected magnetic-effect screen-printing ink and UV process. Confirm substrate thickness, surface treatment and handling requirements with production samples.
Magnetic visual effects for security-printing and brand-protection graphics
Rolling-bar, ring and sphere effects using compatible magnetic-effect inks
Single-color roll-fed screen printing with magnetic control and UV drying
| Model | WL-350D-CK-3D |
|---|---|
| Printing colors | Single color |
| Process configuration | Magnetic control and two-lamp UV drying |
| Screen frame size | 550 × 700 mm |
| Maximum print area | 330 × 450 mm |
| Maximum web width | 350 mm |
| Maximum feed length | 450 mm |
| Main machine dimensions (L × W × H) | 2500 × 1100 × 1700 mm |
| Net weight | 1300 kg |
| Gross weight | 1800 kg |
| Main machine power supply | 380 V |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.3 kW |
| Vacuum motor power | 0.37 kW |
Product questions
The WL-350D-CK-3D combines single-color screen printing, magnetic control equipment and UV drying. The catalogue lists rolling-bar, ring and sphere magnetic visual effects for security-printing applications. Confirm the intended appearance with compatible inks and an approved production sample.
The maximum print area is 330 × 450 mm, the maximum web width is 350 mm and the maximum feed length is 450 mm. The specified screen frame size is 550 × 700 mm. Material width and printable image width are separate limits.
The equipment list includes one magnetic controller, one two-lamp UV dryer and one rewinding unit, alongside the unwinding unit, main printing machine and two material-feeding sections. Confirm the magnetic equipment specification, UV lamp ratings and final arrangement in the quotation.
Compatibility depends on the substrate, its surface treatment, the selected magnetic-effect ink and UV drying conditions. Provide material and ink samples together with the required visual effect so adhesion, drying, magnetic appearance and material handling can be assessed.
The main machine dimensions are 2500 × 1100 × 1700 mm, with a 380 V main machine supply. Net weight is 1300 kg and gross weight is 1800 kg. Request the complete line footprint, total electrical requirements and clearance for operation and roll changes.
Send the substrate type and thickness, web width, reel details, artwork, print size and repeat, magnetic-effect ink information, a visual reference and target output. Ask for practical production speed and registration performance to be confirmed with the intended materials and effect.
