WL-350D
WL-350D steel plate screen printing configuration with right-feed, single-color printing, a 330 × 450 mm print area and a spring-type conveying oven.

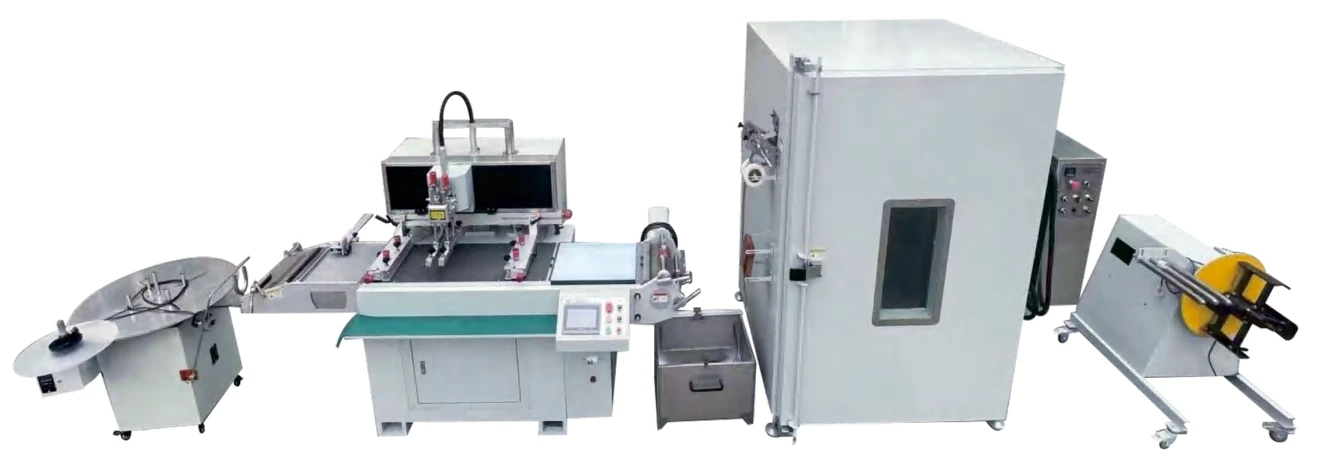

Request a QuoteThe WL-350D Steel Plate Screen Printing Machine is listed in the catalogue as a right-feed, single-color configuration with oven drying. The application heading identifies electronic-label printing. Specify the steel plate version when requesting this equipment so the printing setup, tooling and material-handling arrangement can be reviewed against your job.
The maximum print area is 330 × 450 mm, with a 350 mm maximum web width, a 450 mm maximum feed length and a 550 × 700 mm screen frame. Submit the artwork and material samples to confirm the usable printing format and required setup.
This equipment list distinguishes the configuration from the standard WL-350D oven arrangement. Review how the intended material travels through the drying stage and confirm the oven specification in the final quotation.
Provide the substrate, thickness, artwork and ink information for a sample review. Confirm the required tooling, feeding method, adhesion and drying conditions before selecting the configuration. Assess registration and practical output using the actual print coverage and repeat.
The main machine measures 2500 × 1100 × 1700 mm and has a listed 380 V supply. Request a complete line layout, oven electrical requirements and operating clearances.
Browse our specialty screen printing machines, or compare the WL-350D left-feed oven configuration when reviewing alternative equipment arrangements.
Job-specific materials for the catalogue-listed steel plate screen printing configuration. Submit samples to confirm the substrate, thickness, tooling and oven compatibility before ordering.
Electronic-label printing
Single-color jobs requiring the catalogue-listed steel plate configuration
Processes using a spring-type material-conveying oven
| Model | WL-350D |
|---|---|
| Configuration | Steel plate, right-feed, single-color |
| Drying equipment | Spring-type material-conveying oven |
| Screen frame size | 550 × 700 mm |
| Maximum print area | 330 × 450 mm |
| Maximum web width | 350 mm |
| Maximum feed length | 450 mm |
| Main machine dimensions (L × W × H) | 2500 × 1100 × 1700 mm |
| Net weight | 1300 kg |
| Gross weight | 1800 kg |
| Main machine power supply | 380 V |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.3 kW |
| Vacuum motor power | 0.37 kW |
Product questions
This is the catalogue-listed WL-350D Steel Plate Screen Printing Machine, specified as right-feed, single-color and oven-equipped. Its equipment list includes a spring-type material-conveying oven. Identify this version explicitly when requesting a quotation.
The listed maximum print area is 330 × 450 mm, with a 350 mm maximum web width and a 450 mm maximum feed length. The screen frame size is 550 × 700 mm. Confirm the job layout and tooling with the intended material samples.
The catalogue lists one unwinding unit, one main machine, one material-feeding section and one spring-type material-conveying oven. It also lists two squeegees, two ink-return blades and one tooling box. Agree on the detailed oven and line configuration in the quotation.
The catalogue uses the name Steel Plate Screen Printing Machine but does not provide an approved steel thickness range or a detailed tooling method. Submit the material and application requirements so the correct printing setup, feeding method and tooling can be confirmed.
The main machine dimensions are 2500 × 1100 × 1700 mm, with a 380 V main machine supply, 1300 kg net weight and 1800 kg gross weight. Obtain the complete line drawing and electrical schedule to account for the conveying oven, material access and maintenance space.
Send the substrate and thickness, artwork, print area and repeat, ink specification, required registration and target output. A sample trial should confirm the printing setup, adhesion, drying and material handling. Agree on the practical production rate for that tested job.
