WL-500GT
Single-color cylinder-bed screen printing for roll-fed materials, with a drying oven and handling designed to reduce surface scratching. Maximum web width is 500 mm; listed print area is 500 × 800 mm.
Request a QuoteThe WL-500GT is a single-color cylinder-bed screen printing machine supplied in an oven-drying configuration. Its catalogue highlights handling intended to reduce scratching, making surface condition an important part of the application review.

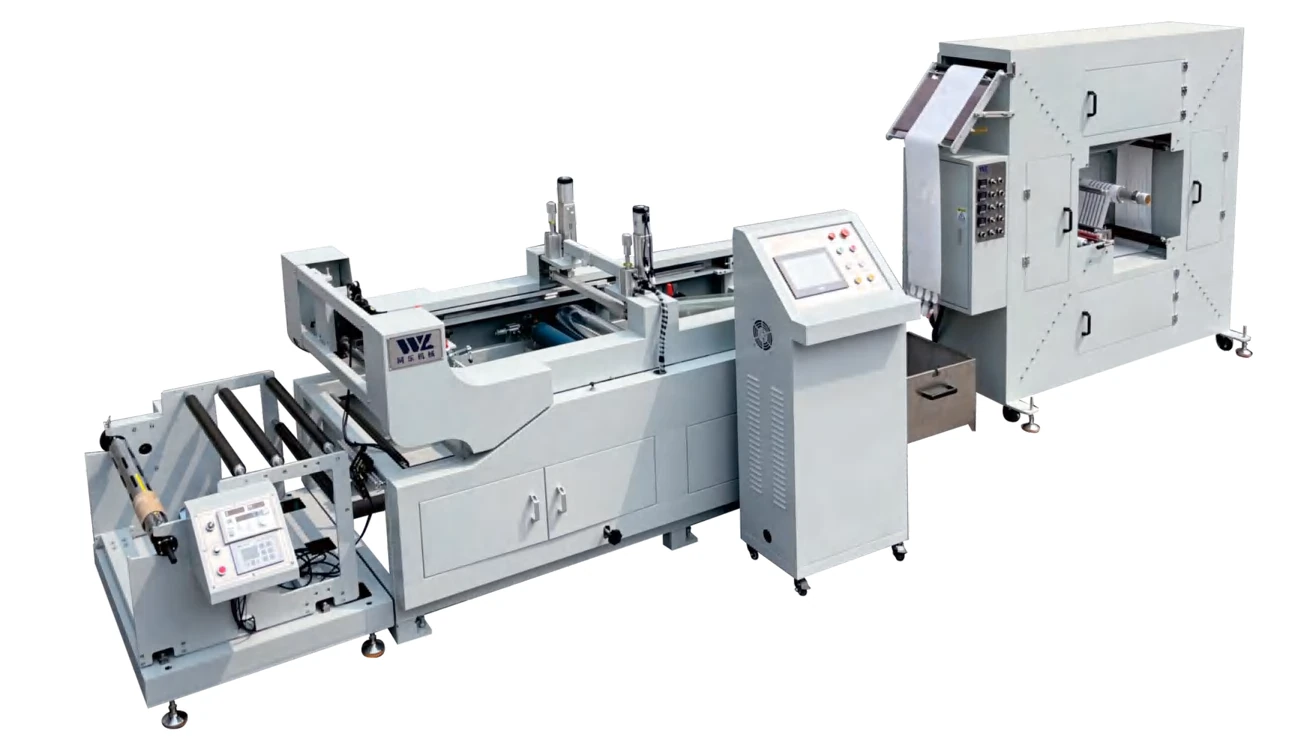

The listed equipment includes an unwinding unit, the printing machine, a feeding unit and a drying oven. The cylinder-bed designation describes the printing configuration; this model processes roll-fed material and should be selected around the web and the required printed result.
Send the substrate, thickness, surface treatment and examples of any marking that must be avoided. Sample evaluation should cover material transport, the printed finish and the effect of drying on the surface.
The catalogue lists a maximum print area of 500 × 800 mm and a maximum feed length of 500 mm as separate specifications. Provide the required artwork size and print repeat so the usable job format can be confirmed before ordering.
For installation, the stated main machine dimensions are 3600 × 1300 × 1600 mm. The main machine uses a listed 220 V supply and the drying oven a 380 V supply. Confirm the full line footprint, electrical load and drying requirements with the final configuration.
Explore the specialty screen printing equipment range for other application-specific configurations.
Roll-fed materials for which surface handling is a key selection requirement. Confirm substrate, coating, ink and drying compatibility with representative samples.
Single-color screen printing on roll-fed materials
Print jobs requiring evaluation of surface-marking and scratch-sensitive handling
| Model | WL-500GT |
|---|---|
| Printing configuration | Single-color, cylinder-bed |
| Material feed | Roll-fed |
| Drying configuration | Drying oven |
| Screen frame size | 800 × 1000 mm |
| Maximum print area | 500 × 800 mm |
| Maximum web width | 500 mm |
| Maximum feed length | 500 mm |
| Main machine dimensions (L × W × H) | 3600 × 1300 × 1600 mm |
| Net weight | 1000 kg |
| Gross weight | 1200 kg |
| Main machine power supply | 220 V |
| Drying oven power supply | 380 V |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.8 kW |
Product questions
The WL-500GT catalogue configuration includes an unwinding unit and a material-feeding unit for roll-fed production. Cylinder-bed refers to its printing configuration; the listed equipment is not a bottle-printing setup.
The catalogue lists a maximum web width of 500 mm, a maximum print area of 500 × 800 mm and a maximum feed length of 500 mm. These are separate specifications. Send the artwork dimensions and print repeat so the usable job format can be confirmed.
The catalogue highlights handling intended to reduce surface scratching. The actual result depends on the substrate, coating, material condition and process settings, so scratch-sensitive applications should be evaluated with production samples.
The listed WL-500GT configuration includes a drying oven. Provide the ink system and the material thermal limits so the drying temperature, residence time and required output can be reviewed; the catalogue does not state universal drying settings.
The catalogue lists main machine dimensions of 3600 × 1300 × 1600 mm, a 220 V main machine supply and a 380 V drying oven supply. Confirm space for all units, operator access, roll loading and the complete electrical schedule with the quotation.
Provide the substrate, thickness, surface coating, web width, artwork size, print repeat, ink and target output. Include samples or photographs of unacceptable surface marks, plus your available space and utilities, so handling and drying requirements can be reviewed.
