WL-50120D
Screen printing and horizontal cold foil for roll-fed labels, with a 300 × 1200 mm print area, 510 mm maximum web width and UV drying equipment.

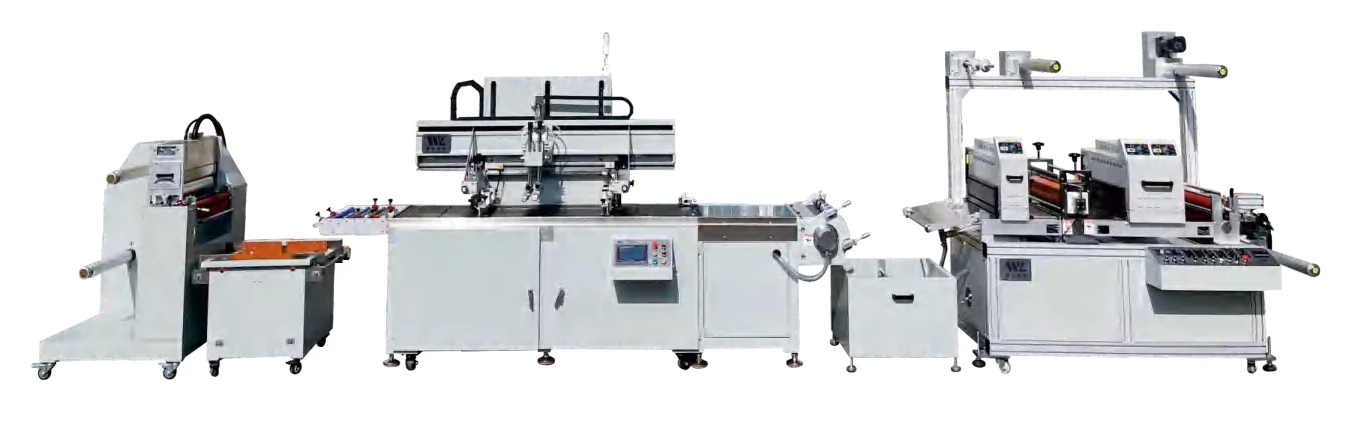

Request a QuoteThe WL-50120D is a single-station screen printing and cold foil machine for roll-fed label production. It combines an unwinding unit, screen printing, material-feeding sections, UV drying equipment and a horizontal cold foil unit. The catalogue identifies household and personal-care product labels as an application.
The maximum print area is 300 × 1200 mm, with a maximum feed length of 1200 mm. This format is useful when assessing artwork that needs a longer print length. The maximum web width is 510 mm; check the image width and material margins separately when planning the job.
Provide samples of the label stock, artwork and intended foil so ink adhesion, UV drying and foil transfer can be assessed together. The suitable ink and adhesive system depends on the substrate and required finish. Check the print repeat, image coverage and material handling at the proposed operating settings before confirming production performance.
The main machine measures 3500 × 1250 × 1700 mm and has a listed net weight of 1500 kg. Its specified supply is 380 V. Confirm the complete line footprint, electrical requirements and access for roll changes with the final equipment configuration.
Explore our screen printing and cold foil machines, or compare the WL-6090D when reviewing a different combination of print width and length.
Roll-fed label substrates compatible with the selected screen-printing ink, adhesive, foil and UV process. Confirm material thickness, surface treatment and handling requirements with production samples.
Screen printing and cold foil decoration for household and personal-care product labels
Roll-fed jobs requiring a print length up to 1200 mm
Label production combining screen printing, UV drying and horizontal cold foil
| Model | WL-50120D |
|---|---|
| Process configuration | Single-station screen printing, UV drying and horizontal cold foil |
| Screen frame size | 800 × 1500 mm |
| Maximum print area | 300 × 1200 mm |
| Maximum web width | 510 mm |
| Maximum feed length | 1200 mm |
| Main machine dimensions (L × W × H) | 3500 × 1250 × 1700 mm |
| Net weight | 1500 kg |
| Gross weight | 1800 kg |
| Main machine power supply | 380 V |
| Squeegee servo motor power | 1.5 kW |
| Material-feed servo motor power | 1.8 kW |
| Vacuum motor power | 0.75 kW |
Product questions
The WL-50120D is a roll-fed screen printing and cold foil configuration listed for household and personal-care product labels. Its single printing station works with material-feeding sections, UV drying equipment and a horizontal cold foil unit. Suitability for a particular label stock should be checked with samples.
The catalogue specifies a maximum print area of 300 × 1200 mm, a maximum web width of 510 mm and a maximum feed length of 1200 mm. The web width is the material-handling limit; it does not mean the full 510 mm width can be printed in this configuration.
The equipment list includes one horizontal cold foil unit, one single-lamp UV dryer and one two-lamp UV dryer. It also lists an unwinding unit and two material-feeding sections. Confirm the detailed arrangement and the UV equipment ratings in the quotation.
Compatibility depends on the label stock, surface treatment and the selected UV process. Provide the intended ink or adhesive, foil and substrate samples so adhesion, drying and foil transfer can be tested. The catalogue does not specify universal compatibility with every consumable.
The main machine dimensions are 3500 × 1250 × 1700 mm, with a 380 V main machine supply. Net weight is 1500 kg and gross weight is 1800 kg. Confirm the complete line layout, total electrical load and operating clearance for the ordered equipment.
Send the material type and thickness, web width, reel details, artwork, print size and repeat, consumables and target output. A verified finished-product rate and numerical registration tolerance are not specified here. Request performance confirmation using the actual label stock and finishing process.
