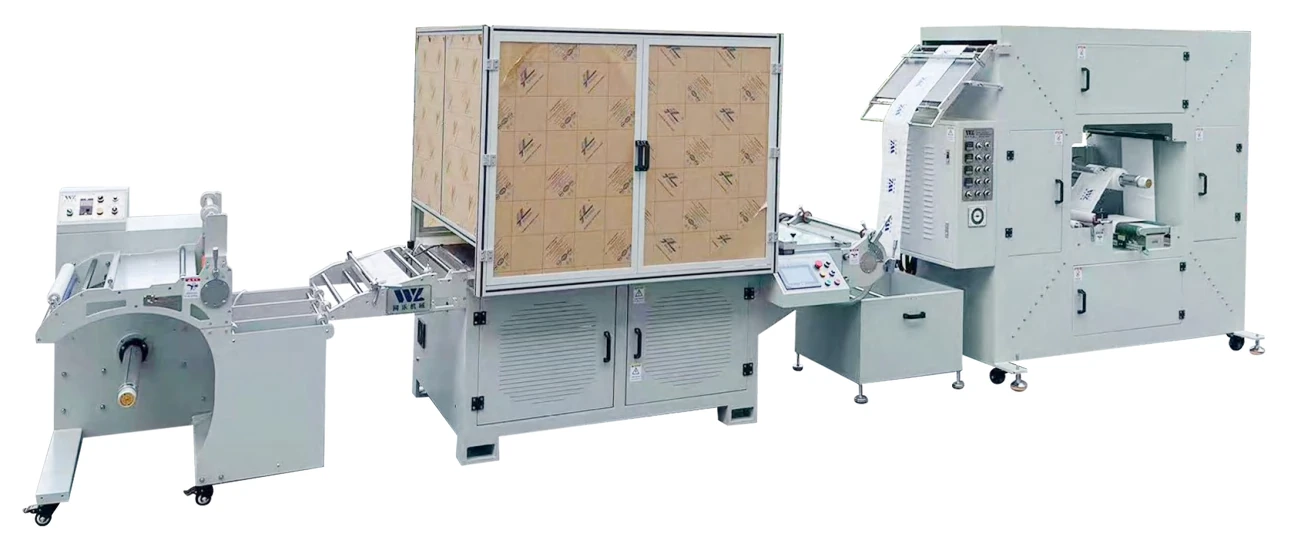

WL-5080CCD-Y
CCD visual registration screen printing with left-side unwinding, a moving screen frame and hot-air drying. Handles webs up to 520 mm wide with a maximum print area of 500 × 800 mm.
Request a QuoteThe WL-5080CCD-Y is a roll-fed screen printing machine with CCD visual registration, a moving screen frame and left-side unwinding. The catalogue configuration includes suction-assisted unwinding and material feeding, followed by a hot-air dryer.
The machine supports a maximum web width of 520 mm, a maximum print area of 500 × 800 mm and a maximum feed length of 800 mm. It is a configuration to consider when a job requires visual alignment and the production layout calls for feeding from the left.
Send the artwork, registration-mark layout, web width, material thickness and required alignment tolerance for review. Include samples that show the reference features and any existing printing that the new image must align with.
For the hot-air drying stage, identify the ink system, the substrate’s allowable temperature and the required drying result. The catalogue does not specify a universal operating temperature or a guaranteed registration tolerance, so these requirements should be agreed for the actual application.
The stated machine dimensions are 2500 × 1250 × 1700 mm. Use the final line drawing to plan space for the unwinding, feeding and drying units, plus operator access and roll loading.
Compare the registration and CCD screen printing range.
The WL-5080CCD-Y is the listed left-feed CCD visual-registration version with a moving screen frame, hot-air drying, a maximum web width of 520 mm and a maximum print area of 500 × 800 mm. The WL-5080CCD is a separate right-feed configuration. Provide artwork, reference marks, substrate and the required finished alignment before selecting either layout. The registration guide explains the sample-review questions; no numerical tolerance is guaranteed by the published model data.
Roll-fed materials requiring visual print registration. Review substrate stability, ink compatibility and allowable drying temperature using actual material samples.
Registered screen printing on roll-fed materials
Production layouts requiring left-side unwinding and hot-air drying
| Model | WL-5080CCD-Y |
|---|---|
| Registration | CCD visual registration |
| Printing configuration | Moving screen frame |
| Feed orientation | Left-side unwinding |
| Drying configuration | Hot-air dryer |
| Screen frame size | 800 × 1000 mm |
| Maximum print area | 500 × 800 mm |
| Maximum web width | 520 mm |
| Maximum feed length | 800 mm |
| Main machine dimensions (L × W × H) | 2500 × 1250 × 1700 mm |
| Net weight | 1200 kg |
| Gross weight | 1800 kg |
| Main machine power supply | 380 V |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.8 kW |
| Vacuum motor power | 0.75 kW |
Product questions
The WL-5080CCD-Y provides roll-fed screen printing with CCD visual registration, a moving screen frame and hot-air drying. It is the catalogue configuration with left-side unwinding, for applications that require print alignment and a compatible web-handling layout.
The maximum web width is 520 mm, the maximum print area is 500 × 800 mm and the maximum feed length is 800 mm. The catalogue specifies an 800 × 1000 mm screen frame.
The catalogue identifies the WL-5080CCD-Y as the left-unwinding configuration and the WL-5080CCD as the right-unwinding configuration. Confirm the material flow direction and complete line layout before selecting a model.
The source catalogue identifies CCD visual registration but does not state a numerical registration tolerance for this model. Provide your required tolerance, artwork, reference marks and material samples so the application can be evaluated before a performance specification is agreed.
The WL-5080CCD-Y catalogue configuration includes a hot-air dryer. Confirm drying temperature, residence time and ink compatibility for the actual substrate; the catalogue does not provide a universal drying setting for every material.
Send the material, thickness, web width, print dimensions, artwork, registration-mark layout, required tolerance, ink system and target output. Include available space, the required left-side feed arrangement and local electrical supply. The catalogue lists a 380 V main machine supply; the full line requirements should be confirmed with the quotation.
