WL-5080DW
Single-color screen printing with three-point registration and a drying oven, offering a 500 × 800 mm print area for films, membrane switches and flexible circuits.

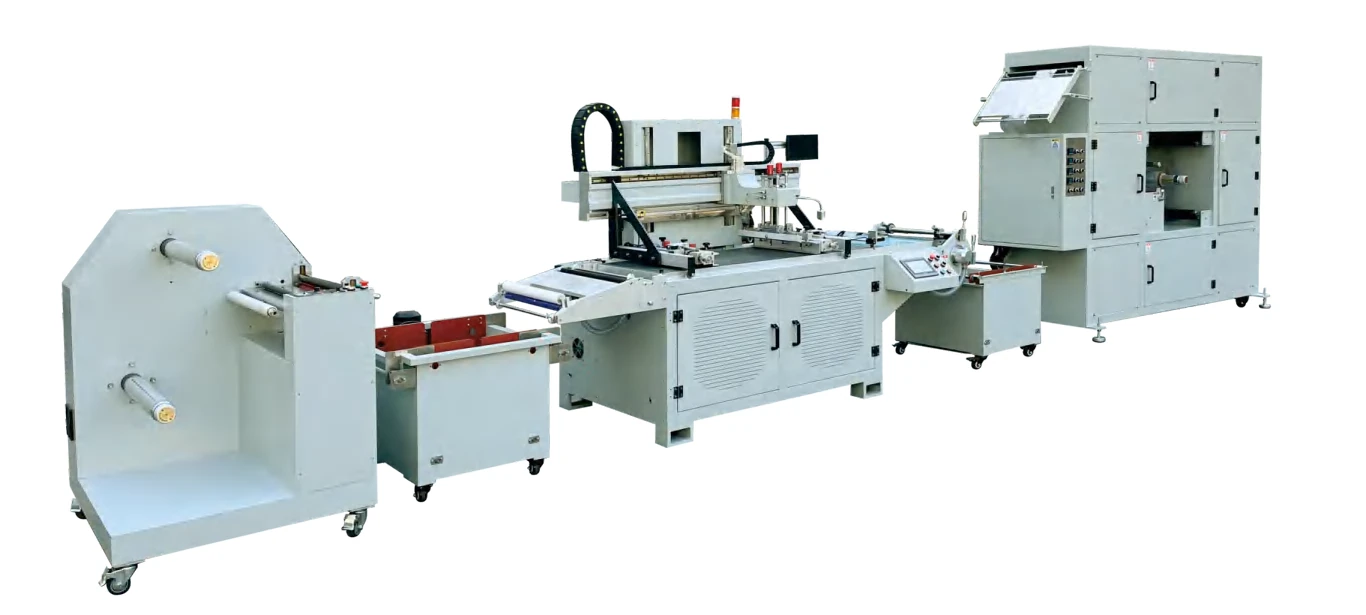

Request a QuoteThe WL-5080DW is a single-color screen printing machine with three-point registration and a drying oven. It combines unwinding, a main printing station and material-feeding sections with oven drying for roll-fed applications. The catalogue identifies membrane switches, diffuser films, heating films, flexible circuits and transfer printing among its applications.
The maximum print area is 500 × 800 mm, supported by an 800 × 1000 mm screen frame. Maximum web width is 510 mm and maximum feed length is 800 mm. Review the artwork size, repeat and handling margins together when assessing the machine for a production job.
Provide production samples, artwork and the required registration tolerance so the positioning process can be assessed for the job. For heat-sensitive films and functional printed layers, confirm ink compatibility, adhesion and material behavior under the proposed oven conditions. Agree on drying settings and practical output after reviewing the actual substrate and print coverage.
The listed main machine supply is 220 V and net weight is 1200 kg. Request a confirmed installation drawing, complete line dimensions and the oven electrical requirements before preparing the site. Include working clearance and access for material loading in the layout review.
Compare our registration screen printing machines, including the WL-5080CCD when evaluating a CCD registration configuration.
Roll-fed films and flexible substrates suitable for the selected screen-printing ink and oven-drying process. Confirm thickness, surface treatment, thermal response and registration requirements through sample testing.
Membrane switches and diffuser films
Heating films and flexible circuits
Heat-transfer and water-transfer printing
| Model | WL-5080DW |
|---|---|
| Printing colors | Single color |
| Registration configuration | Three-point registration |
| Drying configuration | Drying oven |
| Screen frame size | 800 × 1000 mm |
| Maximum print area | 500 × 800 mm |
| Maximum web width | 510 mm |
| Maximum feed length | 800 mm |
| Net weight | 1200 kg |
| Gross weight | 1800 kg |
| Main machine power supply | 220 V |
| Squeegee servo motor power | 0.75 kW |
| Material-feed servo motor power | 1.8 kW |
| Vacuum motor power | 0.75 kW |
Product questions
The WL-5080DW is a single-color screen printing machine with three-point registration and a drying oven. Listed applications include membrane switches, diffuser films, heating films, flexible circuits, and heat-transfer or water-transfer printing. Confirm suitability with the intended substrate and artwork.
The maximum print area is 500 × 800 mm, maximum web width is 510 mm and maximum feed length is 800 mm. The screen frame size is 800 × 1000 mm. Check printable width, material margins and repeat length separately when planning a job.
The catalogue lists one unwinding unit, one main printing machine, two material-feeding sections and one drying oven. It also lists two squeegees, two ink-return blades and a tooling box. Confirm the oven specification and complete equipment arrangement in the quotation.
Films and flexible circuits are among the listed applications, but suitability depends on the actual substrate, ink and drying process. Provide samples so adhesion, registration and material behavior can be evaluated under the proposed oven conditions before agreeing on a production configuration.
The WL-5080DW is identified as a three-point registration model; its listed configuration does not identify a CCD system. Specify the artwork, registration references and required tolerance when requesting a trial. Compare a separately listed CCD model if camera-based registration is required.
Send the material type, thickness and width, reel details, print size and repeat, ink information, registration tolerance, target output and available floor space. The main machine supply is listed as 220 V. Request a confirmed installation drawing, complete dimensions, oven electrical requirements and practical production rate for the proposed job.
